High Efficiency Particulate Air (HEPA) Filter

HEPA filter – the Ultimate Protective Barrier for Stringent Cleanroom Requirements

High efficiency particulate air (HEPA) filters are widely used in cleanrooms, operating rooms, biological laboratories, pharmaceuticals, electronics manufacturing, and other industries. They are key equipment for controlling airborne dust, bacteria, and other harmful particles.

  • Sub-HEPA air filters (E10-E12), also known as EPA filters, are primarily used to capture capture particles >0.5 μm, including dust, bacteria, and large airborne particulates.
  • High efficiency particulate air filters (H13-H14), commonly known as HEPA filter, can effectively capture particles with a diameter of 0.3 μm, achieving a filtration efficiency of 99.97% or higher.
  • Ultra-low penetration air filters (U15–U17), referred to as ULPA filters, provide a filtration efficiency of over 99.9995% for suspended particles such as 0.1–0.3 μm microparticles, smoke, and microorganisms.
High Efficiency Particulate Air Filter PDF

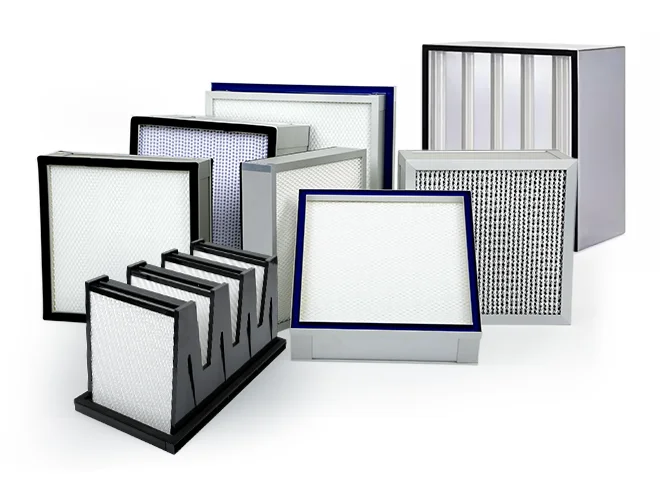

Various separator, mini-pleat and liquid sealant high efficiency particulate air filters
Filter Materials
Glass Fiber Filter Paper

Glass fiber filter paper is a high-efficiency filtration material made from ultra-fine glass fibers through a wet-laid process. It features a dense, uniform fiber structure with exceptional particle retention capabilities. Widely used in HEPA and ULPA-grade air filters, this material can effectively capture suspended particles with diameters ≥ 0.3 microns, achieving filtration efficiencies of 99.97% or higher.

Besides, it offers low pressure drop, excellent flame resistance, and high-temperature tolerance, making it suitable for cleanroom air purification systems in industries such as pharmaceuticals, biotechnology, electronics, and food processing.

Glass fiber filter material for high efficiency particulate air filters
PTFE Filter Paper

PTFE filter paper uses expanded polytetrafluoroethylene (ePTFE) microporous membrane as the filtration medium, offering exceptional chemical inertness and superb hydrophobic properties. With uniform pore size and a stable structure, it effectively filters fine airborne particles while exhibiting excellent resistance to acids, alkalis, corrosion, and high temperatures. It is especially suitable for environments with high humidity, corrosive gases, or extremely high cleanliness requirements – such as biopharmaceuticals, semiconductor manufacturing, and precision instrument laboratories – providing reliable and long-lasting filtration performance for air purification systems.

Two rolls of PTFE filter paper for high efficiency particulate air filters
Sub-HEPA Mini-pleat V-type Air Filter
Features
  • Low initial resistance and excellent energy-saving performance
  • Ideal for space-constrained systems with high airflow requirements
  • Customizable dimensions and flange connections available
  • Stable structure and recyclable design
Applications

Primarily used in high airflow air conditioning purification equipment, serving as intermediate and terminal filtration in air handling unit systems.

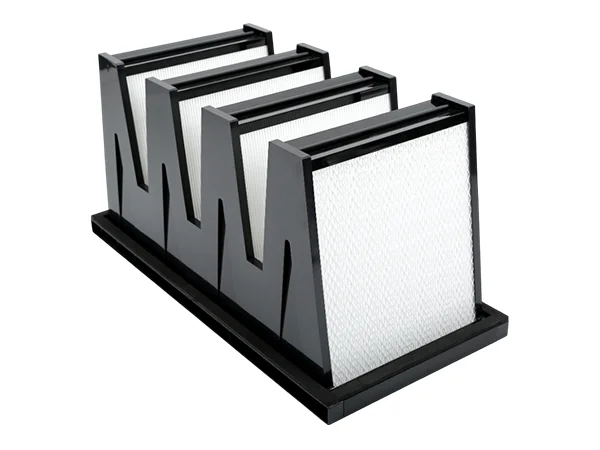

The side view of sub-HEPA mini-pleat V-type air filter

Sub-HEPA mini-pleat V-type air filter

The front view of sub-HEPA mini-pleat V-type air filter

Front

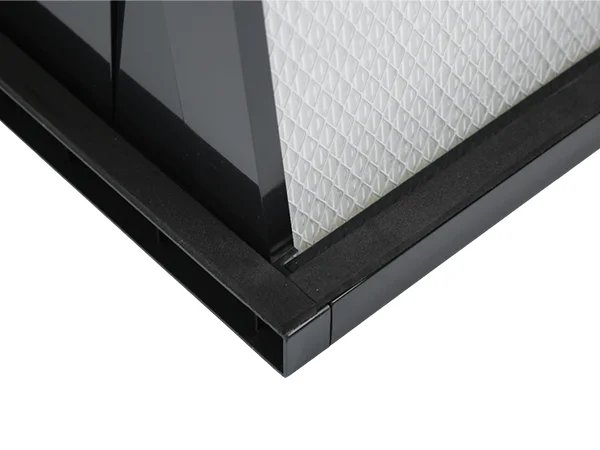

Sub-HEPA mini-pleat V-type air filter details

Details

The side view of sub-HEPA mini-pleat V-type air filter

Sub-HEPA mini-pleat V-type air filter

The front view of sub-HEPA mini-pleat V-type air filter

Front

Sub-HEPA mini-pleat V-type air filter details

Details

Specifications
  • Frame: ABS plastic, stainless steel, galvanized steel sheet
  • Sealant: Polyurethane adhesive
  • Separator: Hot melt adhesive
  • Filter media: Glass fiber filter paper or polypropylene
  • Individually tested to EN 1822:2019
Table 1: Sub-HEPA Mini-pleat V-Type Air Filter Specifications
Model External Dimensions (W × H × D) Frame Filtration Area Rated Airflow Initial Pressure Drop (Pa)
mm m² m³/h E10
JAFEV-208 287 × 287 × 292 2V 4.2 800 ≤ 185
JAFEV-212 287 × 490 × 292 7.7 1200
JAFEV-216 287 × 592 × 292 9.4 1600
JAFEV-311 490 × 287 × 292 3V 6.4 1100
JAFEV-319 490 × 490 × 292 11.6 1900
JAFEV-324 490 × 592 × 292 14.4 2400
JAFEV-416 592 × 287 × 292 4V 8.4 1600
JAFEV-425 592 × 490 × 292 15.4 2500
JAFEV-432 592 × 592 × 292 18.8 3200
JAFEV-518 592 × 287 × 292 5V 10.5 1800
JAFEV-532 592 × 490 × 292 19.0 3200
JAFEV-539 592 × 592 × 292 23.5 3900
Note: Special specifications can be customized.
Sub-HEPA Separator Air Filter
Features
  • Double-sided protective mesh for filter media protection
  • The separator design ensures uniform airflow through the filter media and prevents channel blockage
  • Ultrafine glass fiber filter paper is used as the filter media, providing stable filtration efficiency.
  • The filter element is sealed with adhesive around its perimeter to effectively prevent air leakage.
Applications

Mainly used in electronics, pharmaceutical, and hospital environments, as well as other applications requiring high levels of cleanliness.

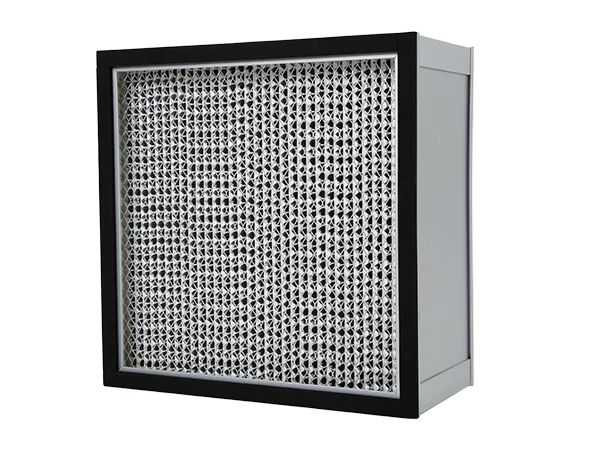

Sub-HEPA separator air filter with aluminum foil separators

Sub-HEPA separator air filter

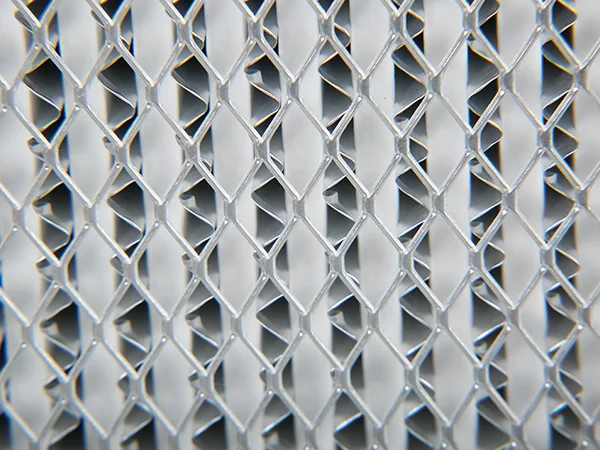

Details display of sub-HEPA separator air filter with aluminum foil separators

Details

Sub-HEPA separator air filter with aluminum foil separators

Sub-HEPA separator air filter

Details display of sub-HEPA separator air filter with aluminum foil separators

Details

Specifications
  • Frame: Aluminum material, stainless steel, galvanized steel sheet
  • Sealant: Polyurethane adhesive
  • Separator: Aluminum foil, coated paper
  • Filter media: Ultrafine glass fiber filter paper
  • Gasket: EVA
  • Individually tested to EN 1822:2019
Table 2: Sub-HEPA Separator Air Filter Specifications
Model External Dimensions (W × H × D) Filtration Area Rated Airflow Initial Pressure Drop (Pa)
mm m² m³/h E10
JAFES-3753.6 305 × 305 × 150 3.6 375 ≤170
JAFES-5256.1 320 × 320 × 220 6.1 525
JAFES-7507.5 305 × 610 × 150 7.5 750
JAFES-120012 315 × 630 × 220 12.0 1200
JAFES-150014 484 × 484 × 220 14.0 1500
JAFES-150015A 305 × 610 × 292 15.0 1500
JAFES-150015B 610 × 610 × 150 15.0 1500
JAFES-225023 915 × 610 × 150 23.0 2250
JAFES-225025 630 × 630 × 220 25.0 2250
JAFES-300029 968 × 484 × 220 29.0 3000
JAFES-300031A 610 × 610 × 292 31.0 3000
JAFES-300031B 1220 × 610 × 150 31.0 3000
JAFES-450050 1260 × 630 × 220 50.0 4500
Note: Special specifications can be customized.
Separator HEPA Filter
Features
  • Uniform airflow distribution. The separator structure effectively prevents filter material adhesion or deformation, ensuring stable ventilation.
  • Long service life. The mechanical support structure is stable, the filter material is not prone to collapse, and maintenance intervals are extended.
Applications

Suitable for various local purification equipment and cleanrooms, for purification of environmental air under normal temperature, humidity, and pressure conditions.

Separator HEPA filter with cardboard separators

Separator HEPA filter

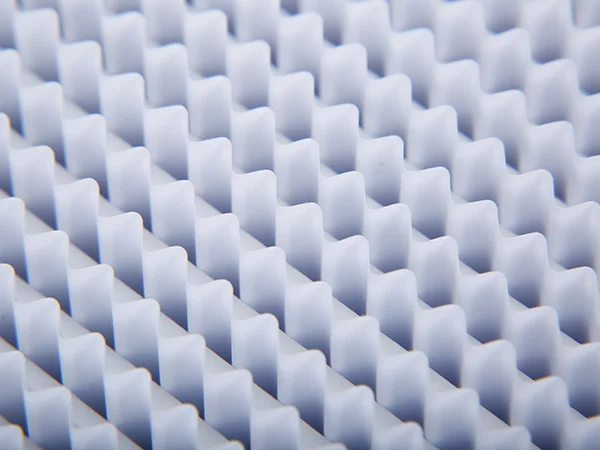

The details display of separator HEPA filter with cardboard separators

Details

Separator HEPA filter with cardboard separators

Separator HEPA filter

The details display of separator HEPA filter with cardboard separators

Details

Specifications
  • Frame: Aluminum material
  • Sealant: Polyurethane adhesive
  • Separator: Gasket paper or aluminum foil
  • Filter material: Ultrafine glass fiber or PTFE filter paper
  • Maximum operating temperature: 80  °C
  • Maximum operating humidity: 80%
  • Gasket: EVA
  • Individually tested to EN 1822:2019
Table 3: Separator HEPA Filer Specifications
Model External Dimensions (W × H × D) Rated Airflow Initial Resistance Efficiency (counting method @0.3μm) Dust Holding Capacity Weight
mm m3/h pa % g kg
JAFHS-0435 320 × 320 × 220 400 ≤ 220 ≥ 99.99% 350 3.4
JAFHS-0540 350 × 350 × 220 500 400 4.0
JAFHS-1060 610 × 610 × 150 1000 600 6.5
JAFHS-1060-1 484 × 484 × 220 1000 600 7.7
JAFHS-1375 820 × 600 × 150 1300 750 8.5
JAFHS-1575 726 × 484 × 220 1500 750 11.5
JAFHS-1580 915 × 610 × 150 1500 800 10.0
JAFHS-1590 630 × 630 × 220 1500 900 13.0
JAFHS-2012 968 × 484 × 220 2000 1200 15.0
JAFHS-2012-1 1220 × 610 × 150 2000 1200 12.5
JAFHS-2314 945 × 630 × 220 2300 1400 19.0
JAFHS-3018 1260 × 630 × 220 3000 1800 23.0
Note: Special specifications can be customized.
Ultra-low Resistance Mini-pleat HEPA Filter
Features
  • Ultra-low resistance
  • Thin profile
  • High efficiency
  • Lightweight
Applications

Widely used in electronics and semiconductor manufacturing, nuclear research, medical, precision machinery, cosmetics, and other environments requiring high cleanliness

Ultra-low resistance mini-pleat HEPA filter with hot-melt adhesive separators

Ultra-low resistance mini-pleat HEPA filter

Specifications
  • Frame: Aluminum material
  • Sealant: Polyurethane adhesive
  • Separator: Hot melt adhesive
  • Filter material: Uultrafine glass fiber or PTFE filter paper
  • Maximum operating temperature: 80  °C
  • Maximum operating humidity: 100%
  • Gasket: EVA
  • Individually tested to EN 1822:2019
Table 4: Ultra-low Resistance Mini-pleat HEPA Filter Specifications
Model External Dimensions (W × H × D) Rated Airflow Dust Holding Capacity Face Velocity Initial Resistance Efficiency (counting method @0.3μm) Weight
mm m3/h g m/s pa % kg
JAFHLM-0503 400 × 400 × 80 500 300 0.90 ≤ 160 ≥ 99.99% 2.8
JAFHLM-0745 610 × 610 × 50 700 450 0.52 3.0
JAFHLM-1060 610 × 610 × 69 1000 600 0.75 3.8
JAFHLM-1060-1 550 × 550 × 80 1000 600 0.90 4.0
JAFHLM-14.585 610 × 610 × 90 1450 850 1.00 5.0
JAFHLM-1590 915 × 610 × 69 1500 900 0.75 6.0
JAFHLM-1811 1170 × 570 × 69 1800 1100 0.75 6.5
JAFHLM-2213 915 × 610 × 90 2200 1300 1.00 7.5
JAFHLM-2917 1220 × 610 × 90 2900 1700 1.00 10.0
Note: Special specifications can be customized.
Mini-pleat HEPA Filter
Features
  • Lightweight and compact structure. Thickness is typically 50–90 mm, suitable for installation in space-constrained environments.
  • Large effective filtration area. Mini-pleat design increases the filter media area per unit volume, extending service life.
Applications

Widely used in purification environments with high coverage requirements for HEPA filters in electronics, medical, food, and other industries.

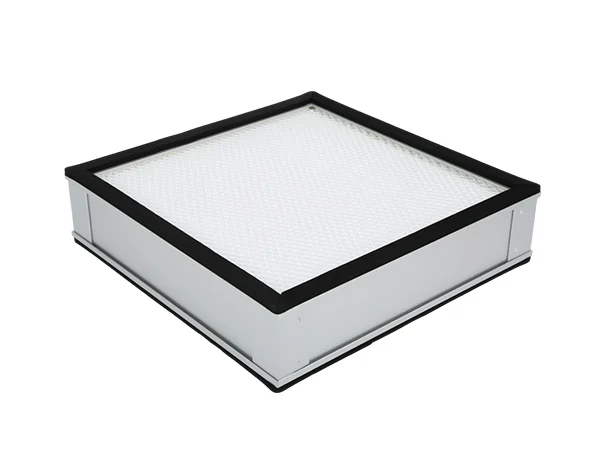

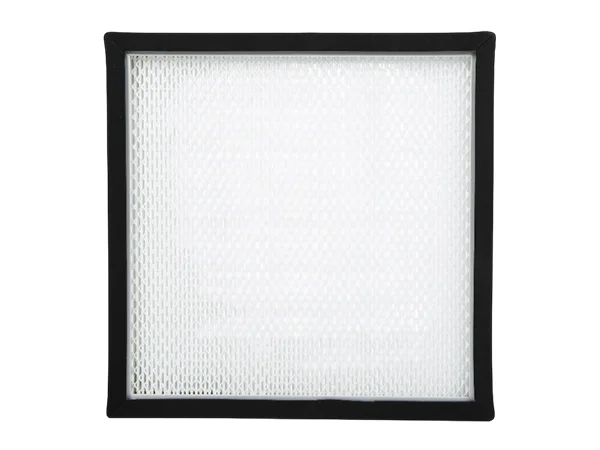

A mini-pleat HEPA filter is displayed on the desk.

Mini-pleat HEPA filter

A mini-pleat HEPA filter is displayed on the desk.

Side

A mini-pleat HEPA filter is displayed on the desk.

Mini-pleat HEPA filter

A mini-pleat HEPA filter is displayed on the desk.

Side

Specifications
  • Frame: Aluminum material
  • Sealant: Polyurethane adhesive
  • Separator: Hot melt adhesive
  • Filter material: Ultrafine glass fiber or PTFE filter paper
  • Maximum operating temperature: 80  °C
  • Maximum operating humidity: 80%
  • Gasket: EVA
  • Individually tested to EN 1822:2019
Table 5: Mini-pleat HEPA Filter Specifications
Model External Dimensions (W × H × D) Rated Airflow Dust Holding Capacity Initial Resistance Efficiency (counting method @0.3μm) Weight
mm m3/h g pa % kg
JAFHM-3522 305 × 610 × 50 350 220 ≤ 220 ≥ 99.99% 1.5
JAFHM-4525 350 × 350 × 80 450 250 1.5
JAFHM-5030 305 × 610 × 69 500 300 1.7
JAFHM-5030-1 400 × 400 × 80 500 300 2.8
JAFHM-7045 610 × 610 × 50 700 450 3.0
JAFHM-8045 484 × 484 × 80 800 450 2.8
JAFHM-9045 484 × 484 × 90 900 550 3.0
JAFHM-10060 610 × 610 × 69 1000 600 3.8
JAFHM-10060-1 550 × 550 × 80 1000 600 4.0
JAFHM-13575 610 × 610 × 80 1350 750 4.5
JAFHM-14585 610 × 610 × 90 1450 850 5.0
JAFHM-15080 630 × 630 × 80 1500 800 4.8
JAFHM-15090 915 × 610 × 69 1500 900 5.6
JAFHM-180110 1170 × 570 × 69 1800 1100 6.1
JAFHM-200110 915 × 610 × 80 2000 1100 6.7
JAFHM-200120 1220 × 610 × 69 2000 1200 7.0
JAFHM-270150 1220 × 610 × 80 2700 1500 9.0
JAFHM-290170 1220 × 610 × 90 2900 1700 10.0
Note: Special specifications can be customized.
Combined V-type HEPA Filter
Features
  • Large airflow, small footprint. The compact structure can replace multiple conventional HEPA filters, saving system space.
  • High efficiency, low resistance. The filter elements are arranged optimally, ensuring smooth airflow, reducing fan load, and saving energy.
Applications

Suitable for terminal filtration in air handling units and various large-airflow air purification equipment.

Combined V-type HEPA filter with a stainless steel frame

Combined V-type HEPA filter

Specifications
  • Frame: Aluminum material
  • Sealant: Polyurethane adhesive
  • Separator: Hot melt adhesive
  • Filter material: Ultrafine glass fiber or PTFE filter paper
  • Maximum operating temperature: 80  °C
  • Maximum operating humidity: 80%
  • Gasket: EVA
  • Individually tested to EN 1822:2019
Table 6: Combined V-type HEPA Filter Specifications
Model External Dimensions (W × H × D) Rated Airflow Initial Resistance Efficiency (counting method @0.3μm) Filter Element
mm m3/h pa % PCS
JAFHMV-104 295 × 595 × 295 1000 ≤ 250 ≥ 99.99% 4
JAFHMV-156 495 × 595 × 295 1500 6
JAFHMV-218 610 × 610 × 295 2100 8
JAFHMV-2710 610 × 610 × 295 2700 10
JAFHMV-3312 610 × 610 × 295 3300 12
Note: Special specifications can be customized.
Liquid Sealant HEPA Filter
Features
  • Utilizes a jelly-like liquid groove sealant for a tight seal with the installation frame.
  • Excellent sealing performance and strong leakage prevention.
  • Quick installation, suitable for areas requiring frequent replacement.
  • Enhances the sealing level of clean zones.
Applications

Primarily used for terminal air supply in cleanrooms, such as in pharmaceutical, medical, food, electronics, semiconductor, and other industries.

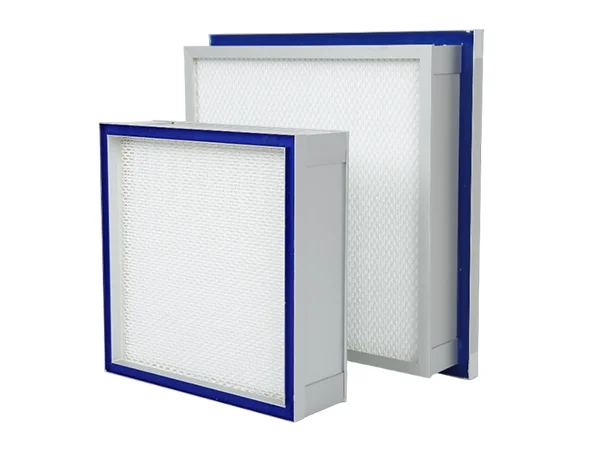

2 liquid sealant HEPA filters with different installation methods

Liquid sealant HEPA filter

Specifications
  • Frame: Aluminum material
  • Sealant: Polyurethane adhesive
  • Separator: Hot melt adhesive
  • Filter material: Ultrafine glass fiber or PTFE filter paper
  • Maximum operating temperature: 80  °C
  • Maximum operating humidity: 80%
  • Individually tested to EN 1822:2019
Table 7: Liquid Sealant HEPA Filter Specifications
Model External Dimensions (W × H × D) Rated Airflow Initial Resistance Efficiency (counting method @0.3μm) Weight
mm m3/h pa % kg
JAFHYC-5A 400 × 400 × 95 500 ≤ 220 ≥ 99.99% 2.1
JAFHYC-5B 400 × 400 × 100 500 2.23
JAFHYC-5C 434 × 434 × 90 500 2.3
JAFHYC-10A 550 × 550 × 95 1000 4.3
JAFHYC-10B 550 × 550 × 100 1000 4.5
JAFHYC-10C 584 × 584 × 90 1000 4.8
JAFHYC-15A 630 × 630 × 95 1500 5.8
JAFHYC-15B 630 × 630 × 100 1500 6.0
JAFHYC-16A 664 × 664 × 90 1600 6.3
JAFHYC-20A 915 × 610 × 95 2000 8.2
JAFHYC-20B 915 × 610 × 100 2000 8.5
JAFHYC-22A 949 × 644 × 90 2200 9.0
Note: Special specifications can be customized.
High-temperature Resistant HEPA Filter
Features
  • High filtration efficiency
  • Large dust holding capacity
  • Low resistance
  • Excellent high-temperature resistance
Applications

Primarily used in equipment and systems requiring high-temperature air purification like ultra-clean ovens.

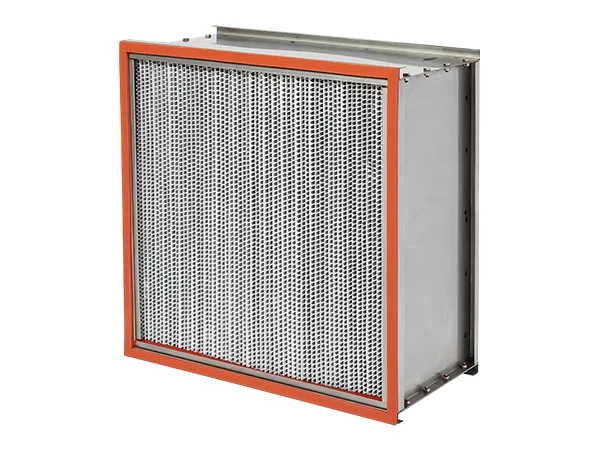

High-temperature resistant HEPA filter with a silicone sealing gasket

High-temperature resistant HEPA filter

Specifications
  • Frame: 316L
  • Sealant: High-temperature resistant sealant
  • Separator: Aluminum foil separator
  • Filter media: Ultrafine glass fiber filter paper
  • Gasket: Silicone gasket
  • Maximum operating temperature: Continuous use at 350  °C
  • Individually tested to EN 1822:2019
Table 8: High-temperature Resistant HEPA Filter Specifications
Model External Dimensions Rated Airflow Dust Holding Capacity Operating Temperature Efficiency ( Counting method @0.3 μm) Initial Resistance
mm m3/h g °C % Pa(22.4 mmH2O)
JAFHRT-10060 610 × 610 × 150 1000 600 I, 250 °C (suitable for long-term use); II, 300 °C (suitable for long-term use); III, 350 °C (suitable for long-term use) ≥ 99.9% (250–300 °C), ≥ 99.95% (350 °C) ≤ 220
JAFHRT-7545 610 × 457 × 150 750 450
Note: Special specifications can be customized.
High-humidity Resistant HEPA Filter
Features
  • High filtration efficiency
  • Large dust holding capacity
  • Low resistance
  • Excellent moisture resistance
Applications

Air purification under conditions of normal temperature, normal pressure, and high humidity, especially in high-humidity environments such as infusion production in the medical industry.

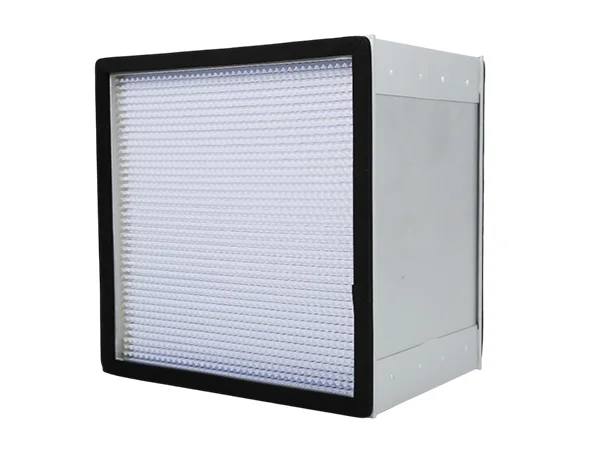

High-humidity resistant HEPA filter with a polyurethane sealing gasket

High-humidity resistant HEPA filter

The details display of high-humidity resistant HEPA filter with a polyurethane sealing gasket

Details

High-humidity resistant HEPA filter with a polyurethane sealing gasket

High-humidity resistant HEPA filter

The details display of high-humidity resistant HEPA filter with a polyurethane sealing gasket

Details

Specifications
  • Frame: Aluminum material
  • Sealant: Polyurethane adhesive
  • Separator: Gasket paper
  • Filter media: Ultrafine glass fiber filter paper
  • Gasket: EVA
  • Maximum operating humidity: Can be used in environments with 100% RH
  • Individually tested to EN 1822:2019
Table 9: High-humidity Resistant HEPA Filter Specifications
Model External Dimensions Rated Airflow Weight Dust Holding Capacity Efficiency (Particle Count Method @ 0.3 μm) Initial Resistance
mm m3/h kg g % Pa (22.4 mmH2O)
JAFHRH-0330 305 × 610 × 150 300 5 300 ≥ 99.99% ≤ 220
JAFHRH-0645 460 × 610 × 150 600 8 450
JAFHRH-0860 610 × 610 × 150 800 10 600
JAFHRH-1075 820 × 610 × 150 1000 13 750
JAFHRH-1285 915 × 610 × 150 1200 15 850
Note: Special specifications can be customized.
Mini-pleat ULPA Filter
Features
  • Low pressure drop
  • Thin profile
  • High efficiency
  • Lightweight
Applications

Ultra-LSI manufacturing facilities, semiconductor manufacturing facilities, atomic energy research centers, cleanrooms, laminar flow equipment, workbenches, and other environments requiring ultra-high cleanliness.

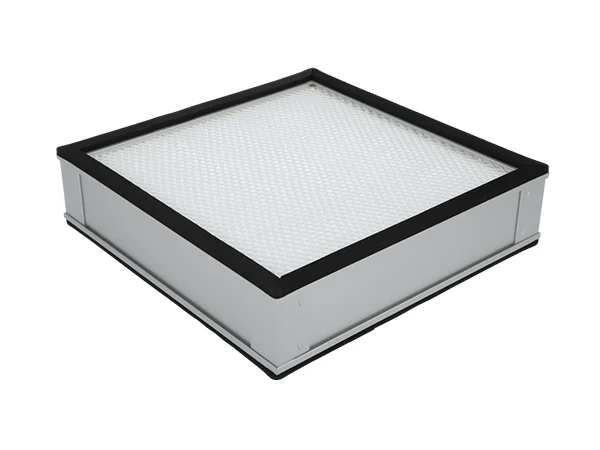

Mini-pleat ULPA filter with an aluminium frame

Mini-pleat ULPA filter

The side view of mini-pleat ULPA filter with an aluminium frame

Side

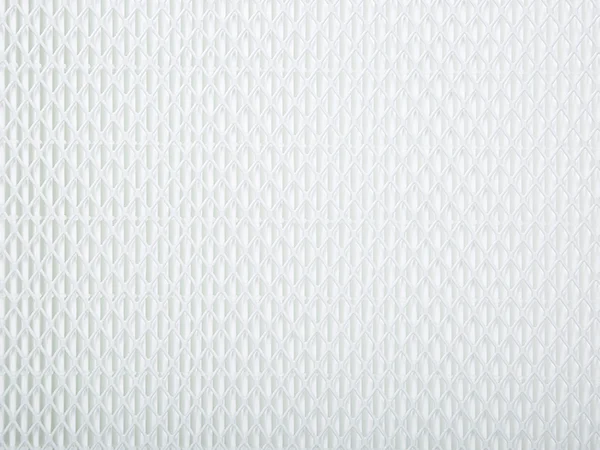

The details display of mini-pleat ULPA filter with an aluminium frame

Details

Mini-pleat ULPA filter with an aluminium frame

Mini-pleat ULPA filter

The side view of mini-pleat ULPA filter with an aluminium frame

Side

The details display of mini-pleat ULPA filter with an aluminium frame

Details

Specifications
  • Frame material: Aluminum material
  • Sealant: Polyurethane adhesive
  • Separator: Hot melt adhesive
  • Filter material: Glass fiber filter paper/PTFE
  • Maximum operating temperature: 80 °C
  • Maximum operating humidity: 100%
  • Gasket: EVA
  • Filtration grade: U15 U16
  • Individually tested to EN 1822:2019
Table 10: Mini-pleat ULPA Filter Specifications
Model External Dimensions (W × H × D) Rated Airflow Dust Holding Capacity Face Velocity Initial Resistance Efficiency Weight
mm m3/h g m/s pa MPPS kg
JAFUM-4735 610 × 610 × 50 470 350 0.35 ≤ 170 ≥ 99.9995% 3.0
JAFUM-6050 610 × 610 × 69 600 500 0.45 3.8
JAFUM-9070 610 × 610 × 90 900 700 0.65 5.0
JAFUM-9075 915 × 610 × 69 900 750 0.45 6.0
JAFUM-10085 1170 × 570 × 69 1000 850 0.45 6.5
JAFUM-130110 915 × 610 × 90 1300 1100 0.65 7.5
JAFUM-170145 1220 × 610 × 90 1700 1450 0.65 10.0
Note: Special specifications can be customized.
A person is using a mobile phone.

Get more information on cleanroom equipment

Learn More

One-Stop Cleanroom System Solution Provider

Room 1012, 10th floor, Building 1, Huizhong guangchang, No. 285 Renmin Road, Taocheng District, Hengshui City, Hebei province, China.

E-mail: hugo@pureflowtec.com

Mobile: +86-13091189390 (WeChat/WhatsApp)

Copyright © 2010 - 2025 Hengshui Pureflow Tech Co., Ltd.
Leave a Message
Chat Offline - Leave a Message
Please leave us a message and we will get back to you shortly.
×
