Air Shower

Air Shower: Excellence in Details, Control at the Entrance

Air showers are essential transition units installed between non-clean and clean zones. Prior to entry, all personnel/materials must pass through the air shower, where high-velocity HEPA-filtered air jets remove surface particulates, effectively preventing contaminants from being carried in. Featuring electronically interlocked front and rear doors, these units function as airlocks to reliably isolate unfiltered air and maintain cleanroom environmental quality.

Air Shower PDF

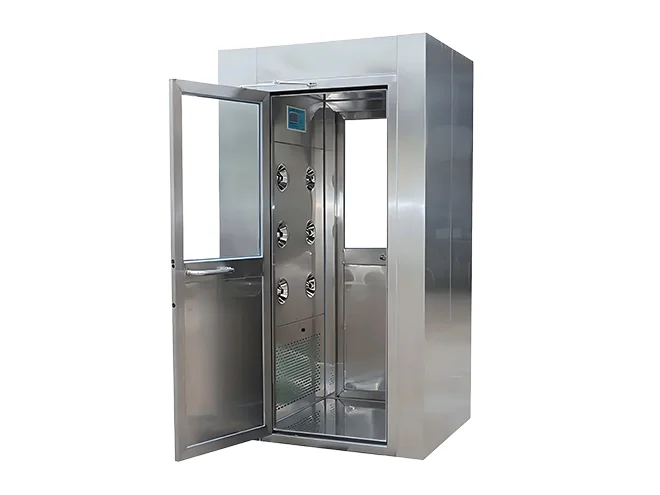

A stainless steel air shower

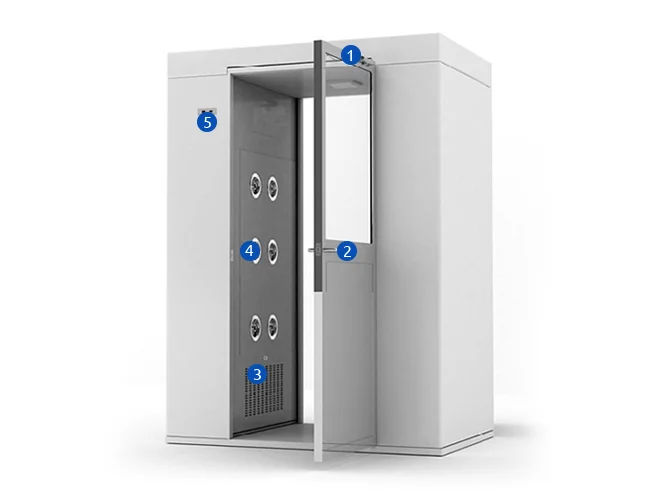

Structure
  1. Door closer
  2. Door handle
  3. Air return
  4. Stainless steel nozzle
  5. LCD
A stainless steel air shower structure display
  • Enclosure Structure
    • Material: High-quality cold-rolled steel plate (powder-coated) or SUS304 stainless steel plate
    • Process: CNC shearing, bending, and welding; surface treated with pickling, phosphating, and electrostatic powder coating.
    • Features: Robust construction, smooth surface, aesthetically pleasing, and durable.
  • Door System
    • Type: Full-glass door with SUS304 stainless steel frame
    • Configuration: Standard with imported door closer.
    • Features: Transparent and aesthetically pleasing, with excellent sealing and corrosion resistance.
  • Control System
    • Control method: Electronic interlock system
    • Interface: LCD display
    • Sensing method: Infrared photoelectric sensor for automatic air shower activation
    • Function: Ensures door interlocking and safety protection during the air shower process
  • Air Shower Passage Design
    • Type: One-way passage
    • Activation: Automatically initiates air shower after entering from the non-clean area and closing the door
    • Safety: Prevents unauthorized entry into the clean area without air shower
  • Internal Structure& Air Shower System
    • Internal material: SUS304 stainless steel liner and base plate
    • Nozzle configuration: Adjustable multi-angle stainless steel nozzles for optimized airflow coverage
    • Fan system: Equipped with high-airflow, low-noise centrifugal fans
  • Optional Accessories
    • Voice prompt system
    • Lighting system
    • Access control card reader system
    • Ultraviolet (UV) sterilization lamp
    • Anti-static device
Door Opening Direction

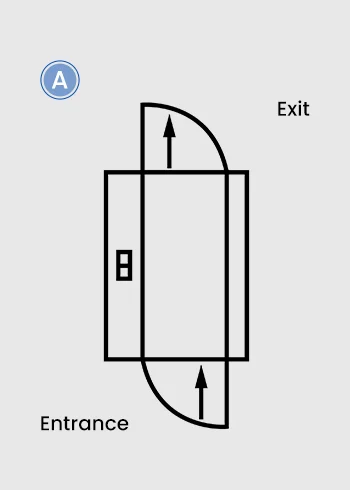

An air shower with opposite doors opening to the left and right, respectively.

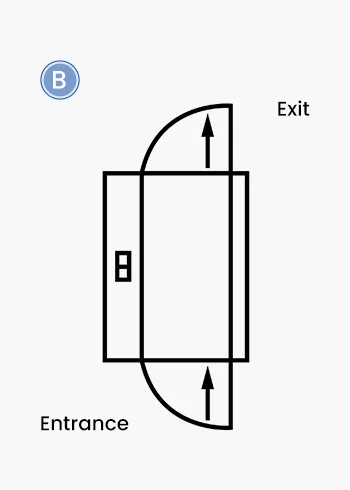

An air shower with opposite doors opening to the right.

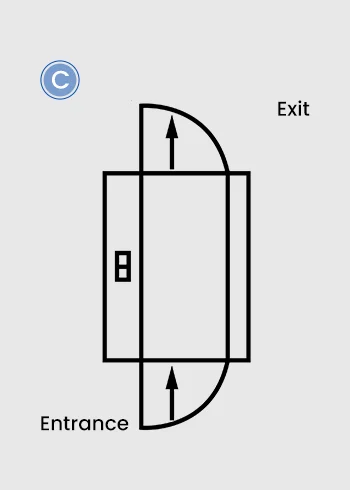

An air shower with opposite doors opening to the left.

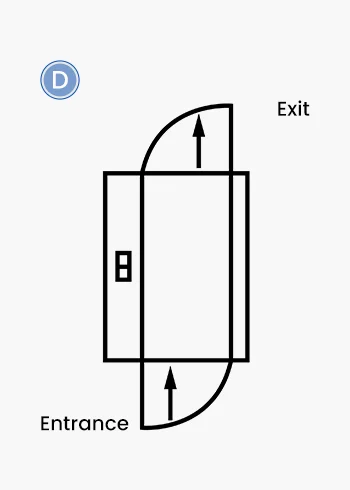

An air shower with opposite doors opening in different directions.
Specifications
Table 1: Air Shower Specifications
Model JASZJ-1A JASZJ-1B JASZJ-2B JASZJ-LS
Filtration efficiency ≥ 99.9% @ 0.5 μm
Number of nozzles 6 12 18 24
Airflow 1000 2000 3000 4000
Power supply AC 380V 3φ, 50 Hz
Weight 300 500 600 900
Max. power consumption 0.55 kW 1.1 kW 1.1 kW 1.5 kW
Enclosure 304 stainless steel or premium steel plate with baked paint finish
Base Frame SUS304 stainless steel
External dimensions ( W × D × H ) mm 1200 × 1000 × 2100 1500 × 1000 × 2100 1400 × 1500 × 2100 2100 × 2000 × 2100
Passage dimensions ( W × D × H ) mm 800 × 900 × 1950 800 × 900 × 1950 800 × 1400 × 1950 1500 × 1900 × 1950
HEPA filter specifications and quantity 484 × 600 × 50 × 1 484 × 600 × 50 × 2 820 × 600 × 50 × 2 600 × 600 × 50 × 4
Fluorescent lamp specifications and quantity 12 W × 1 LED 12 W × 1 LED 12 W × 2 LED 12 W × 2 LED
Number of users Single-person, single-side blowing Single-person, double-side blowing Double-person, double-side blowing Cargo air shower
