Homogeneous PVC Flooring for Cleanrooms

Non-Directional Homogeneous PVC Flooring

Overview

Non-directional homogeneous PVC flooring refers to homogeneous PVC flooring with non-directional surface patterns or granules. Its texture delivers a consistent visual effect regardless of the installation direction.

Non-directional pattern. Randomly distributed Pattern particles without “with-the-grain” or “against-the-grain” orientation, reducing directional constraints during installation.
Easy Installation. No need to consider alignment direction, minimizing cutting waste and improving installation efficiency.
Visual consistency. Creates a strong overall effect when laid in large areas, without noticeable color differences or directional inconsistencies.
Wear resistance & durability. The flooring surface is treated with PUR for enhanced stain resistance, achieving T-grade wear resistance, suitable for high-traffic public spaces.

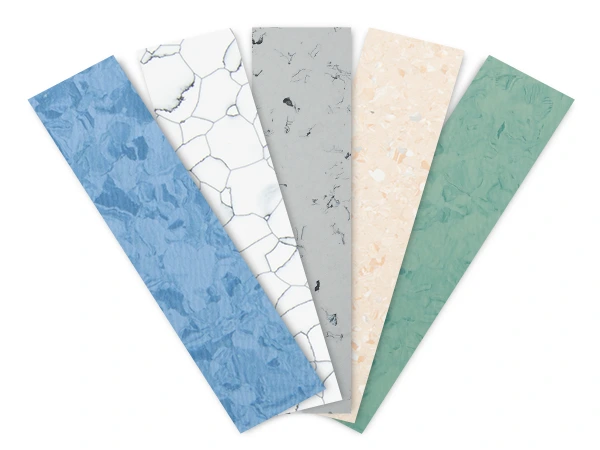

Non-directional homogeneous PVC flooring

Specifications

Table 1: Non-Directional Roll Flooring Technical Specifications
Production standard	EN 649	Non-directional homogeneous tile flooring
Application grade	EN 685	23 / 34 / 43
Special treatment	–	PUR
Weight	EN 430	2850 g/m²
Thickness	EN 428	2.0 mm
Roll width	EN 426	2.0 m
Roll length	EN 426	20 m
Wear resistance	EN 660	Type T
Residual indentation	EN 433	0.3 mm
Dimensional stability	EN 434	≤ 0.4%
Chemical resistance	EN 423	Excellent
Fire resistance	EN 13501-1	Bfl-s1
Electrostatic properties	EN1815	≤ 2KV
Sound insulation	EN ISO 717-2	Approx. +4 dB
Color fastness	EN IS0 105-B02	≥ 6
Antibacterial capability	DIN EN ISO 846-A/C	No bacterial growth
Slip resistance test	DIN 51130	R9
Hazardous substances limit test	GB 18586-2001	Compliant

Patterns

Meizi
Jiezi
Lezi
Lizi
Gaozi
Duozi
Yingzi
Nas-T2
Ruizi
Tianzi

JHPNM2001

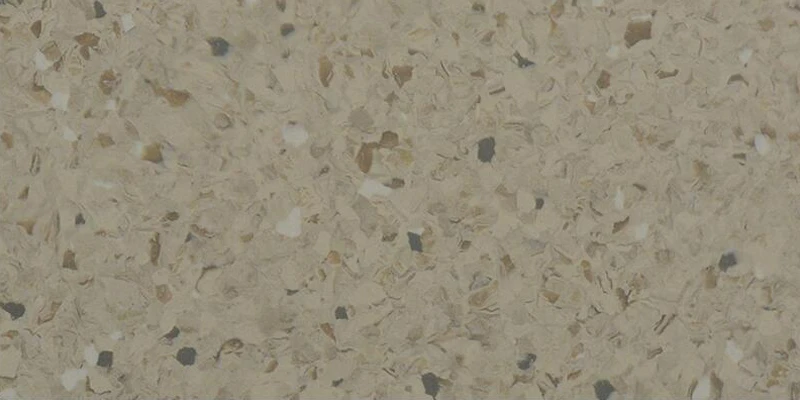

JHPNM2002

JHPNM2003

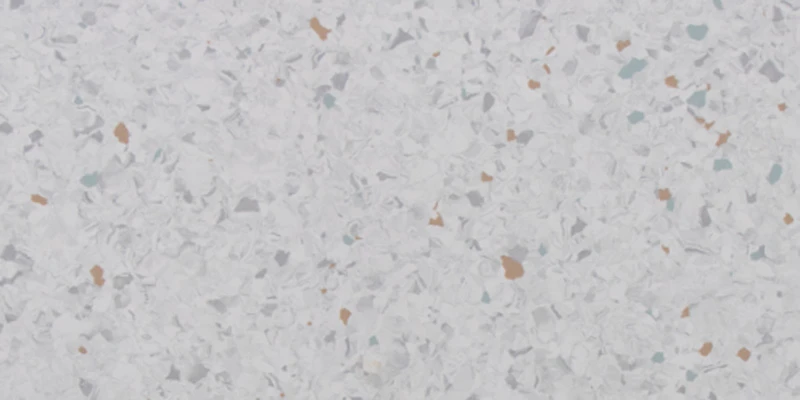

JHPNM2004

JHPNM2005

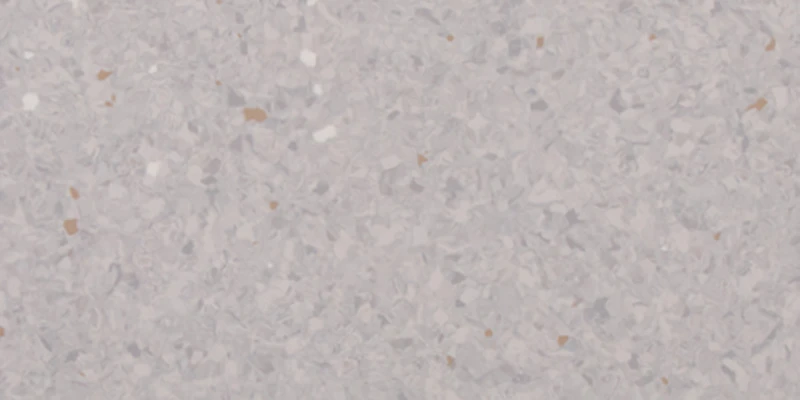

JHPNM2006

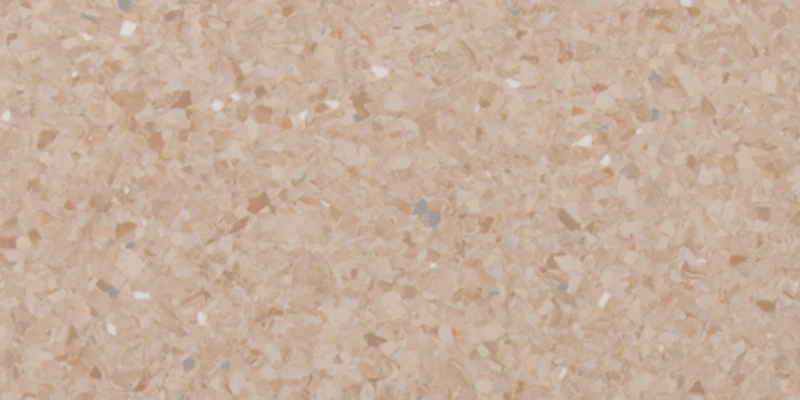

JHPNM2007

JHPNM2008

JHPNM2009

JHPNM2010

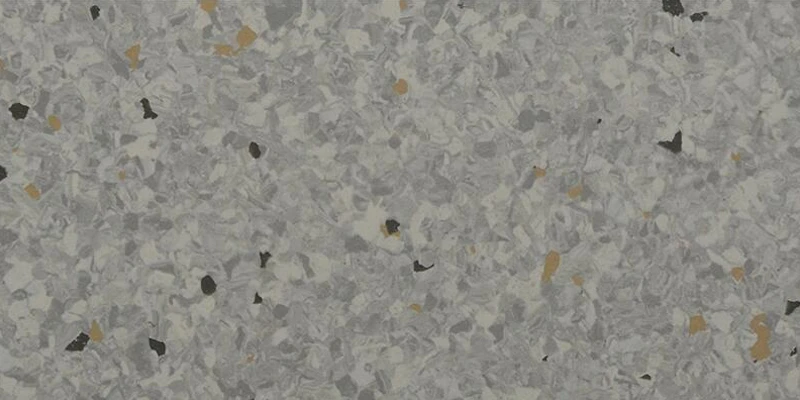

JHPNM2011

JHPNM2012

JHPNM2013

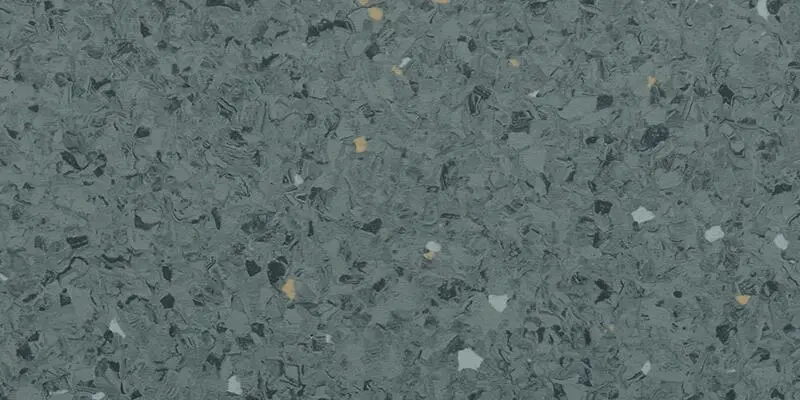

JHPNM2014

JHPNM2015

Meizi

JHPNM2001

JHPNM2002

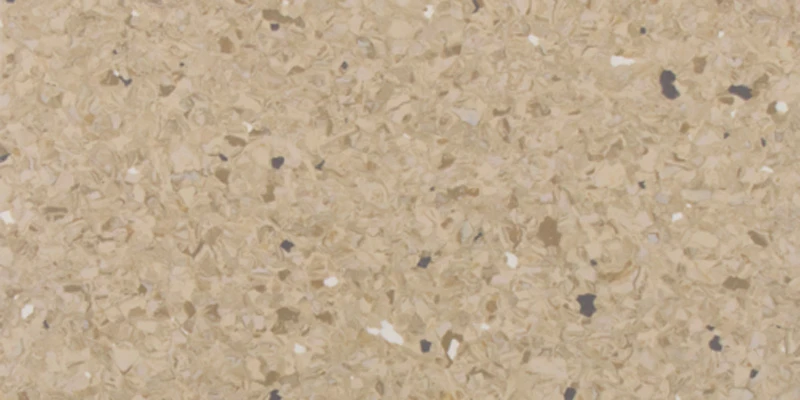

JHPNM2003

JHPNM2004

JHPNM2005

JHPNM2006

JHPNM2007

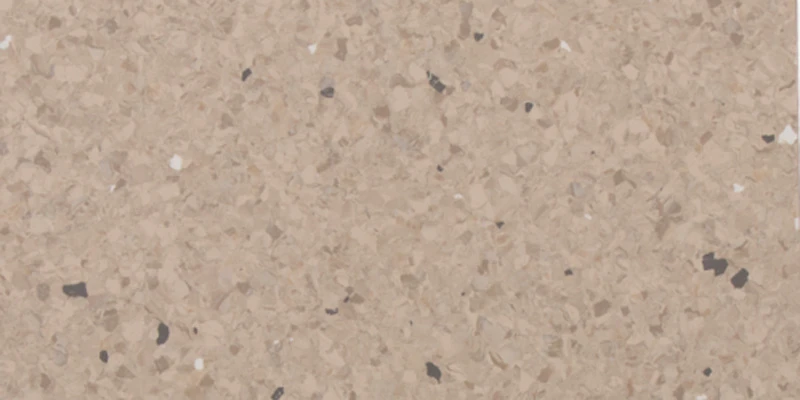

JHPNM2008

JHPNM2009

JHPNM2010

JHPNM2011

JHPNM2012

JHPNM2013

JHPNM2014

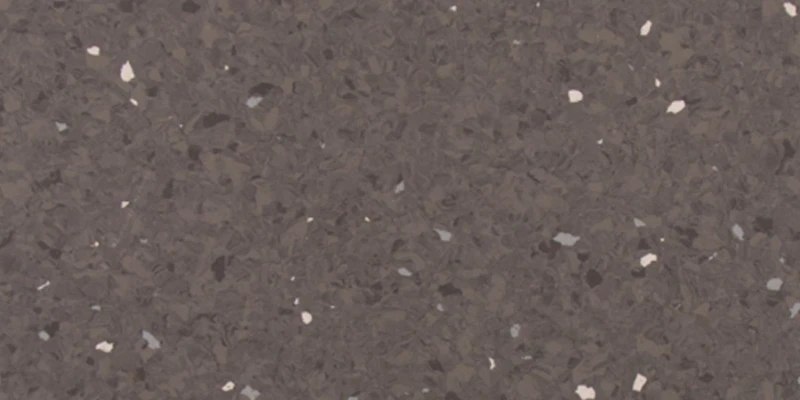

JHPNM2015

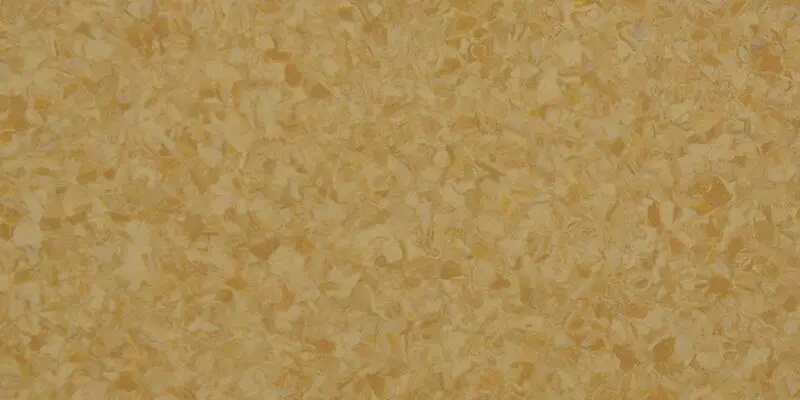

JHPNJ90004

JHPNJ90005

JHPNJ90008

JHPNJ90010

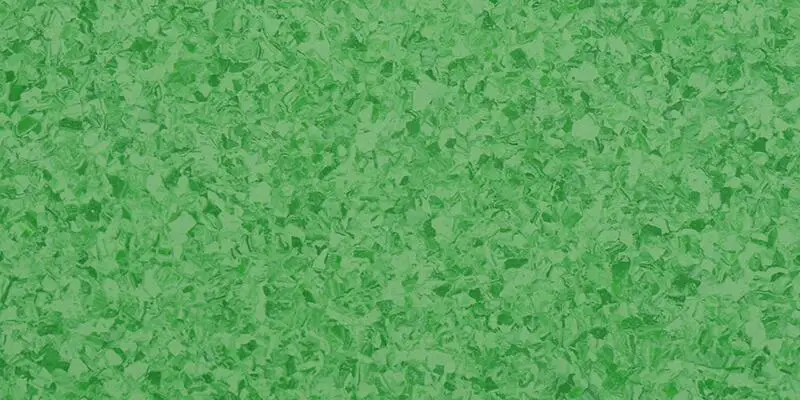

JHPNJ90011

JHPNJ90012

JHPNJ90014

JHPNJ90016

JHPNJ90018

JHPNJ90026

JHPNJ90036

JHPNJ90037

JHPNJ90038

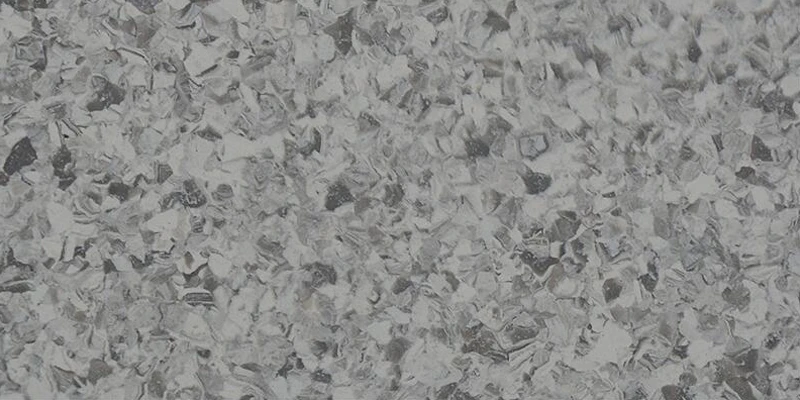

JHPNJ90039

JHPNJ90040

Jiezi

JHPNJ90004

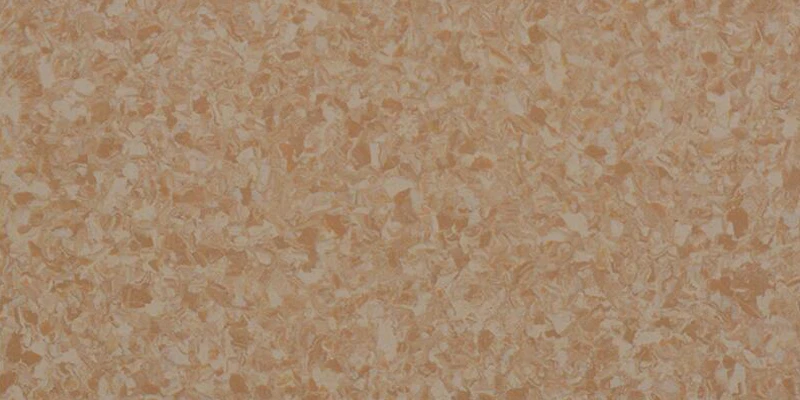

JHPNJ90005

JHPNJ90008

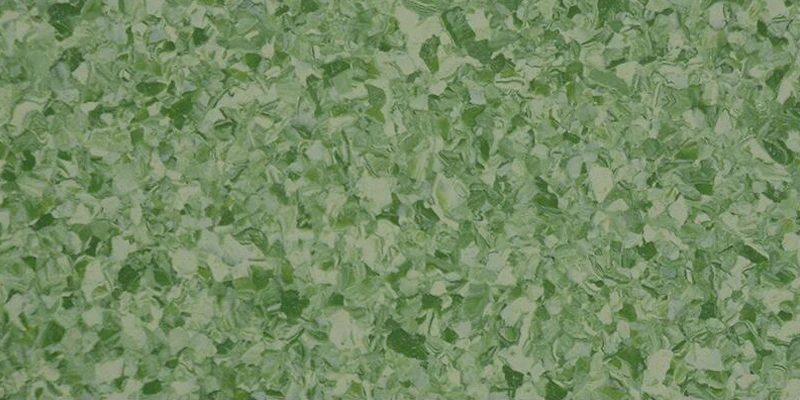

JHPNJ90010

JHPNJ90011

JHPNJ90012

JHPNJ90014

JHPNJ90016

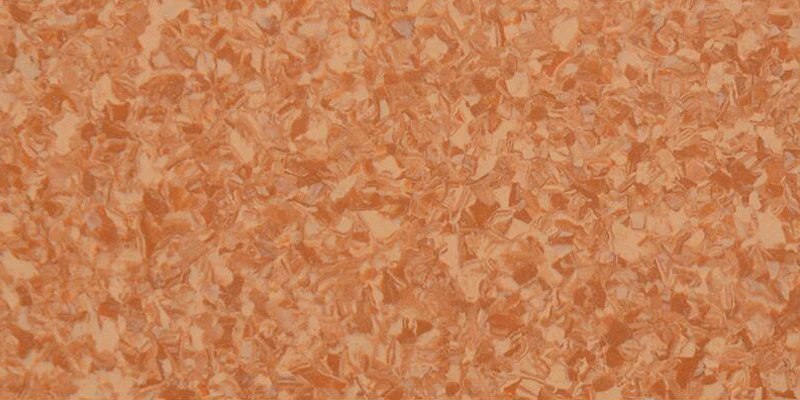

JHPNJ90018

JHPNJ90026

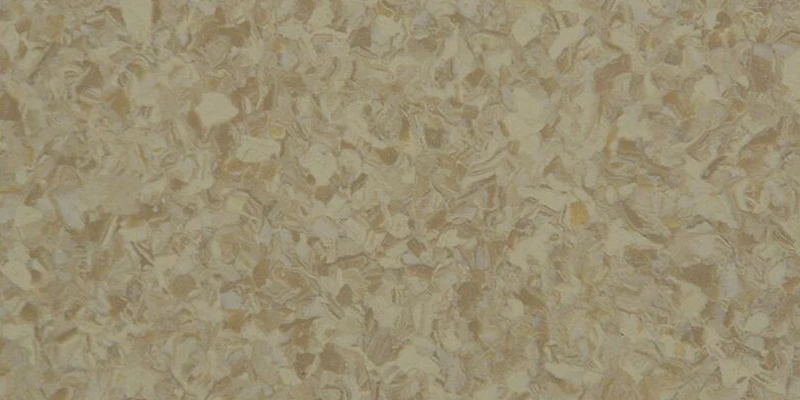

JHPNJ90036

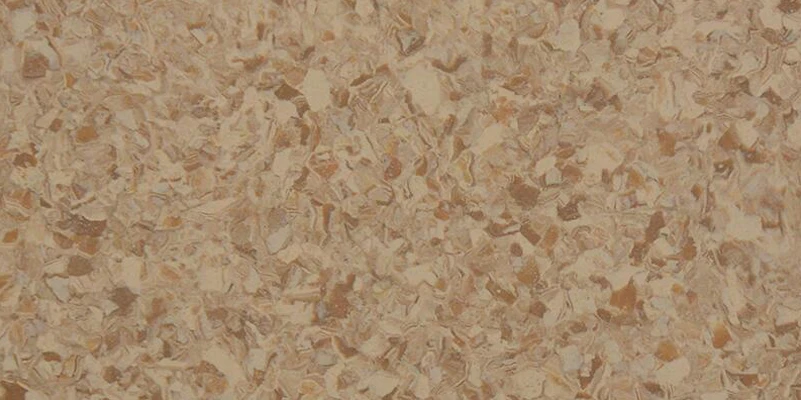

JHPNJ90037

JHPNJ90038

JHPNJ90039

JHPNJ90040

JHPNL1001

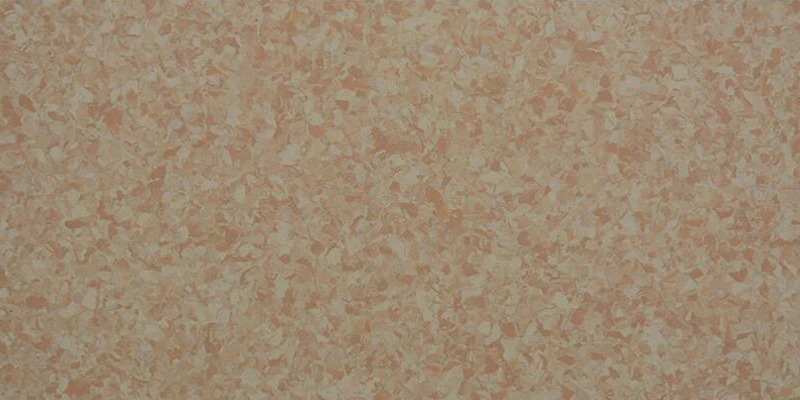

JHPNL1002

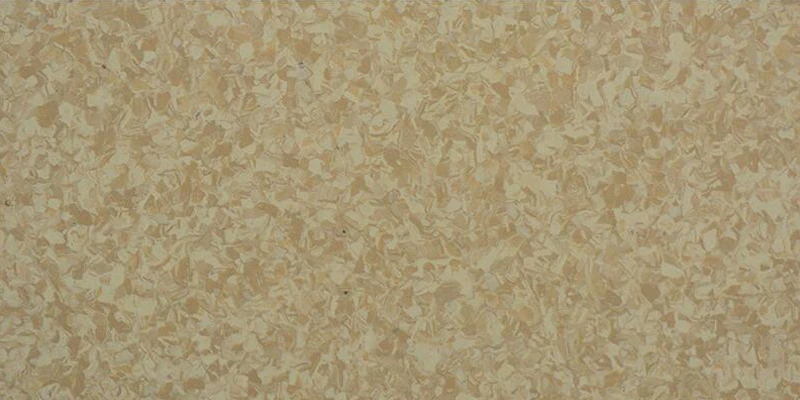

JHPNL1003

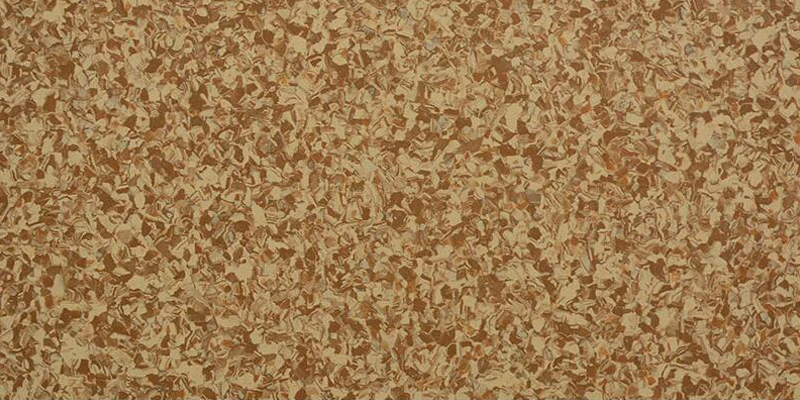

JHPNL1004

JHPNL1005

JHPNL1006

JHPNL1007

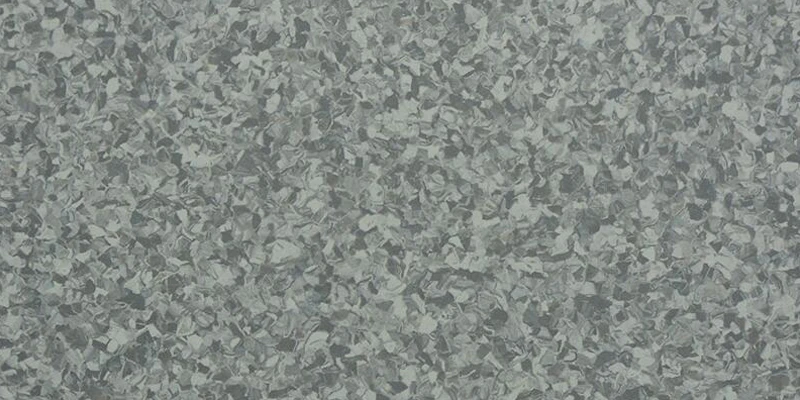

JHPNL1008

JHPNL1009

JHPNL1010

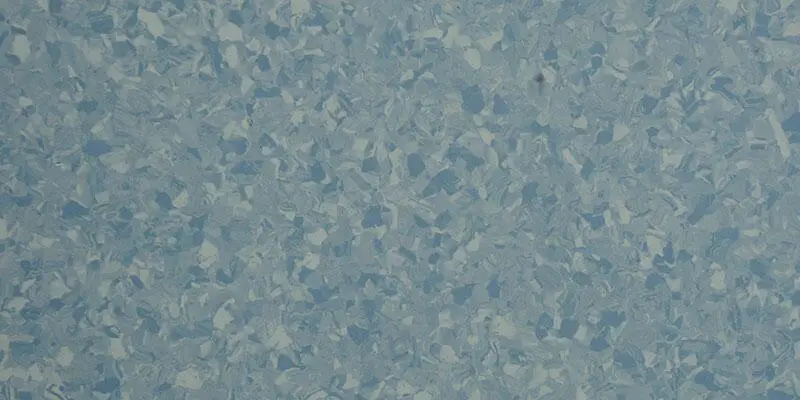

JHPNL1011

JHPNL1012

JHPNL1013

JHPNL1014

JHPNL1015

Lezi

JHPNL1001

JHPNL1002

JHPNL1003

JHPNL1004

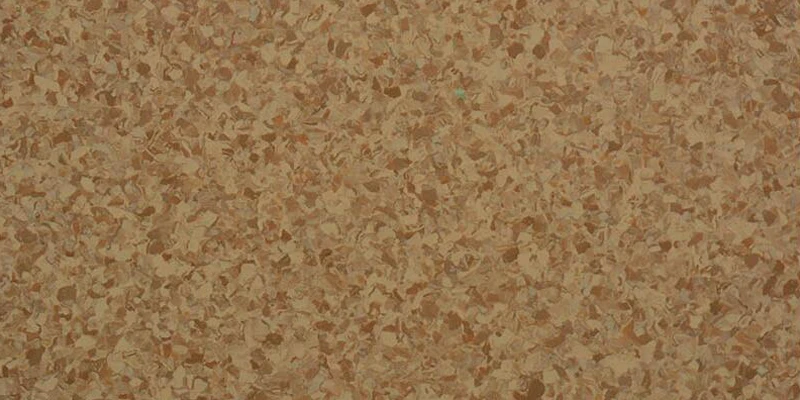

JHPNL1005

JHPNL1006

JHPNL1007

JHPNL1008

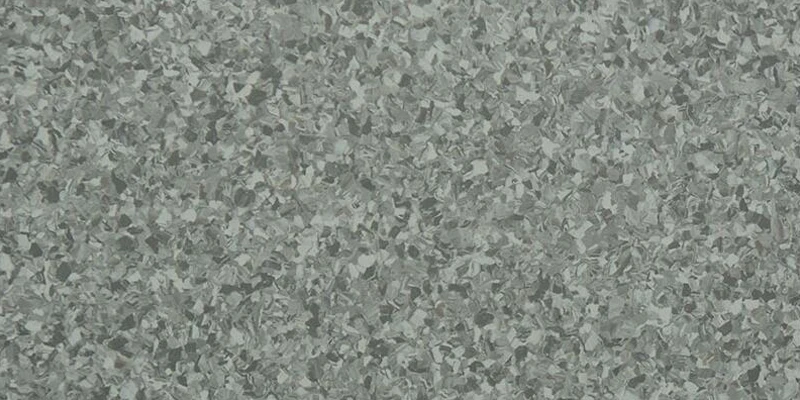

JHPNL1009

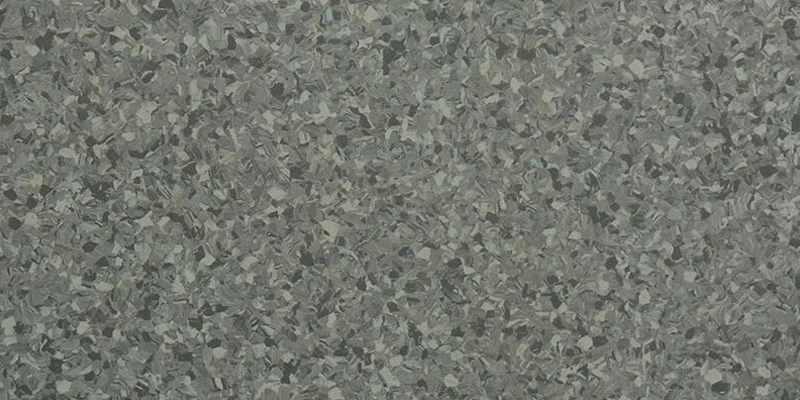

JHPNL1010

JHPNL1011

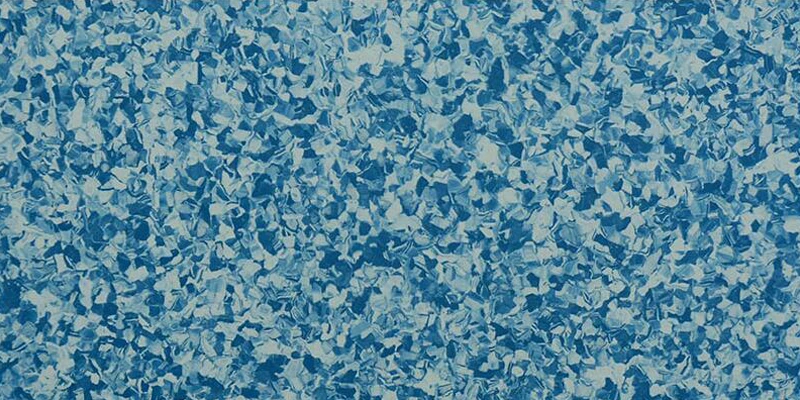

JHPNL1012

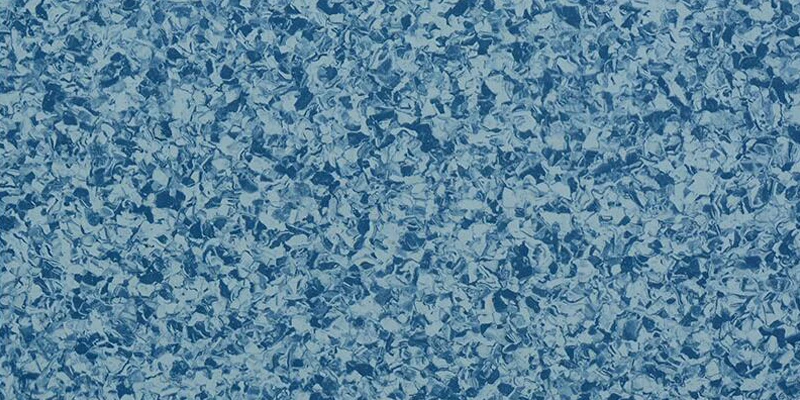

JHPNL1013

JHPNL1014

JHPNL1015

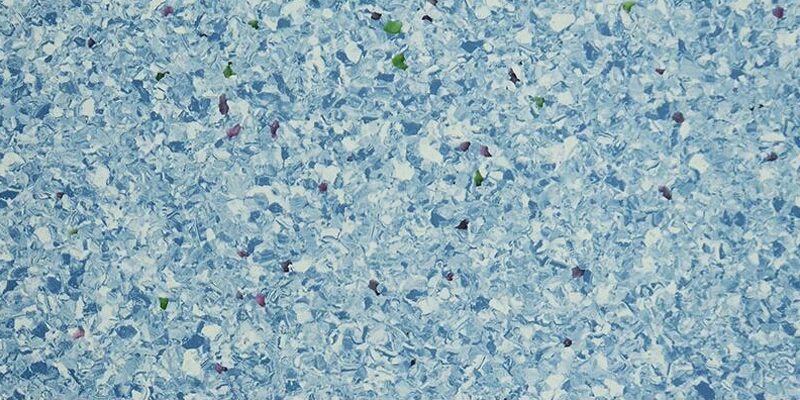

JHPNI5011

JHPNI5012

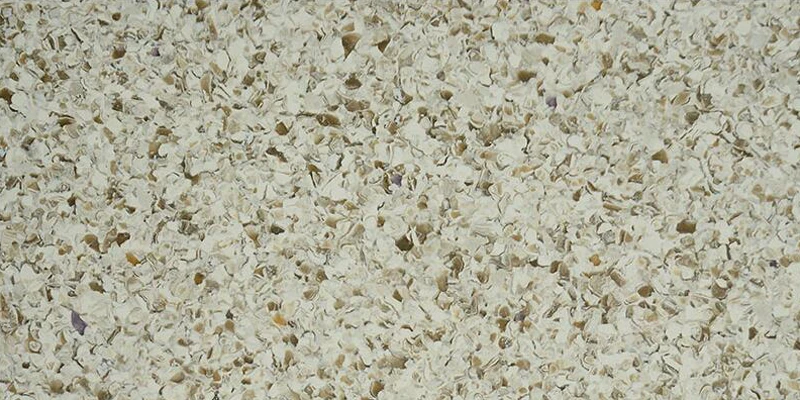

JHPNI5013

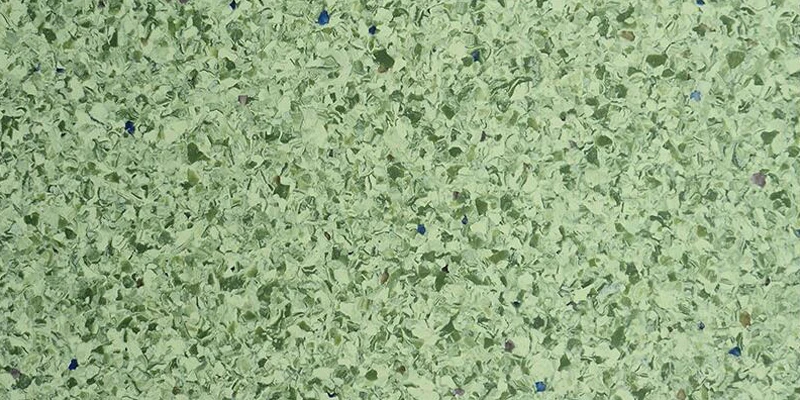

JHPNI5014

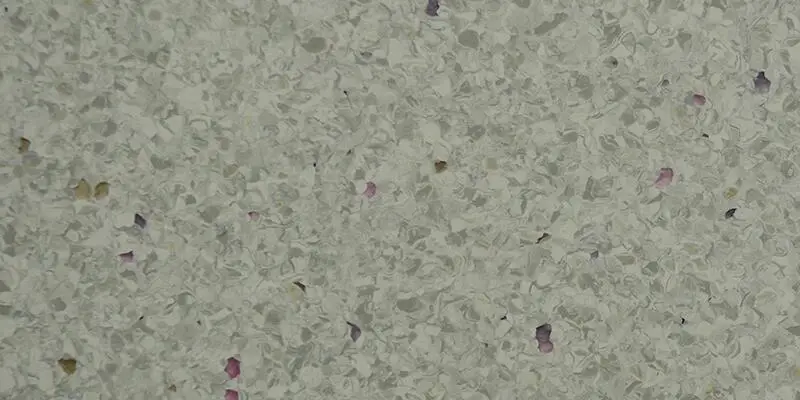

JHPNI5015

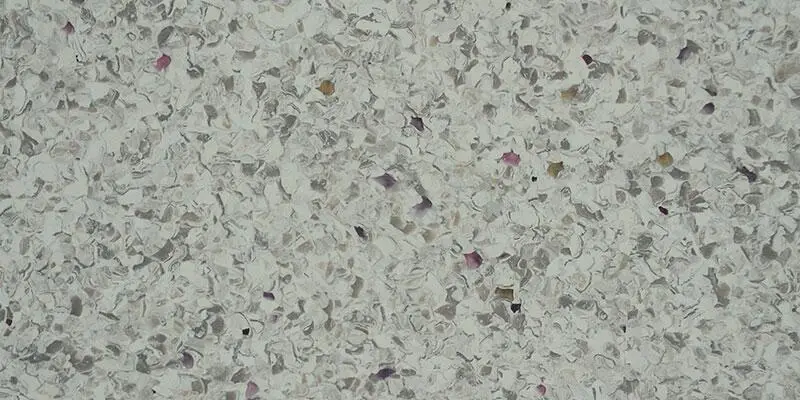

JHPNI5016

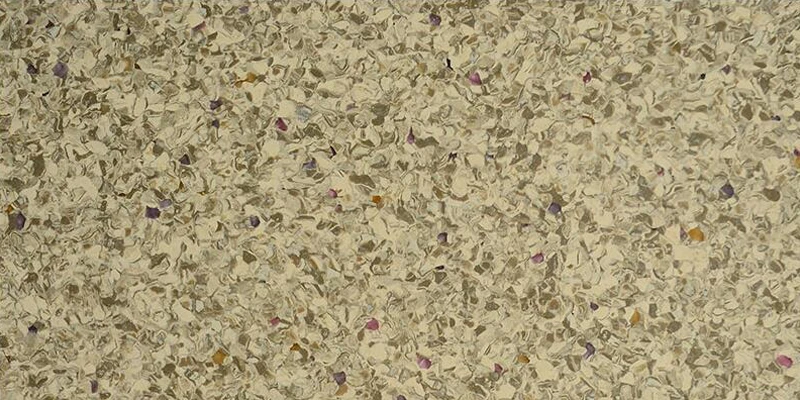

JHPNI5017

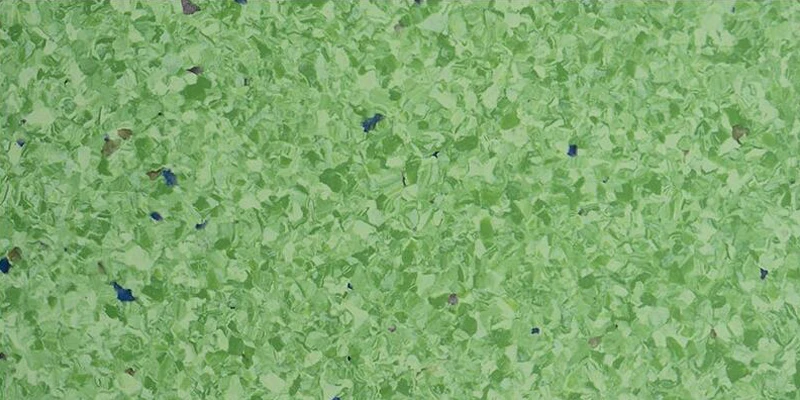

JHPNI5018

JHPNI5019

JHPNI5020

JHPNI5021

JHPNI5022

JHPNI5023

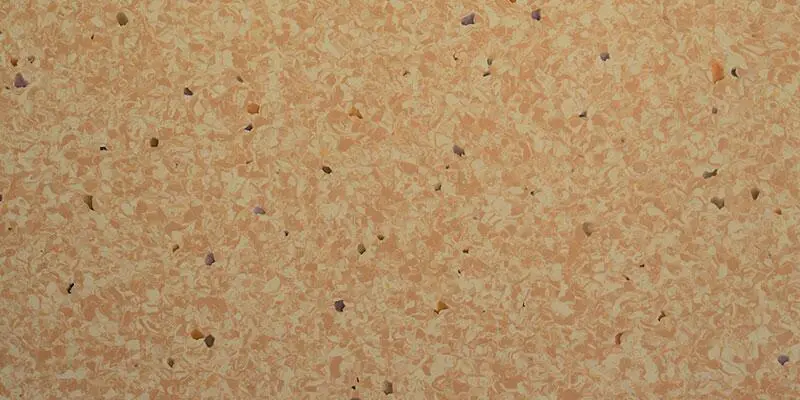

JHPNI5024

JHPNI5025

Lizi

JHPNI5011

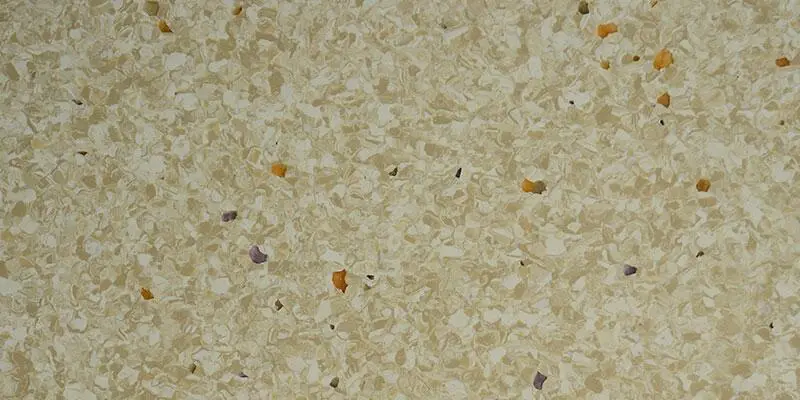

JHPNI5012

JHPNI5013

JHPNI5014

JHPNI5015

JHPNI5016

JHPNI5017

JHPNI5018

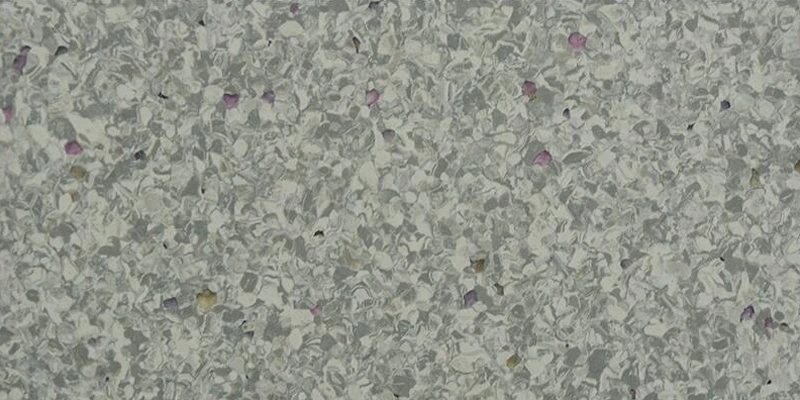

JHPNI5019

JHPNI5020

JHPNI5021

JHPNI5022

JHPNI5023

JHPNI5024

JHPNI5025

JHPNG6010

JHPNG6011

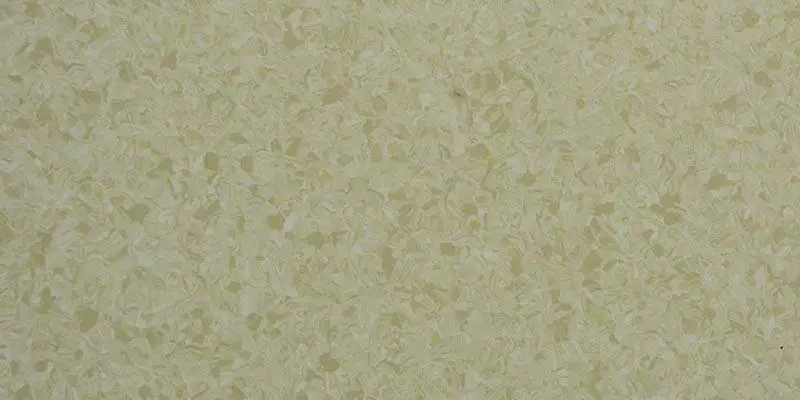

JHPNG6012

JHPNG6014

JHPNG6015

JHPNG6017

JHPNG6018

JHPNG6019

JHPNG6020

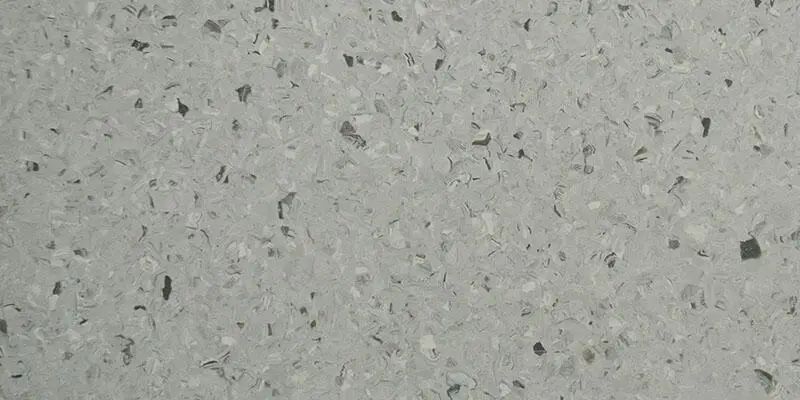

JHPNG6021

JHPNG6023

JHPNG6024

JHPNG6025

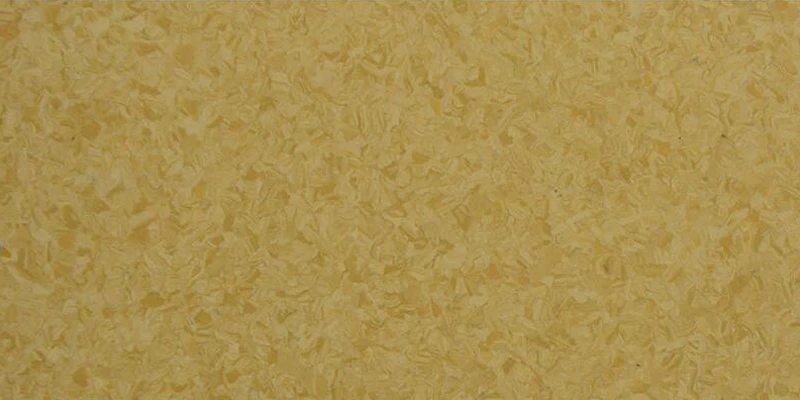

JHPNG6026

JHPNG6027

Gaozi

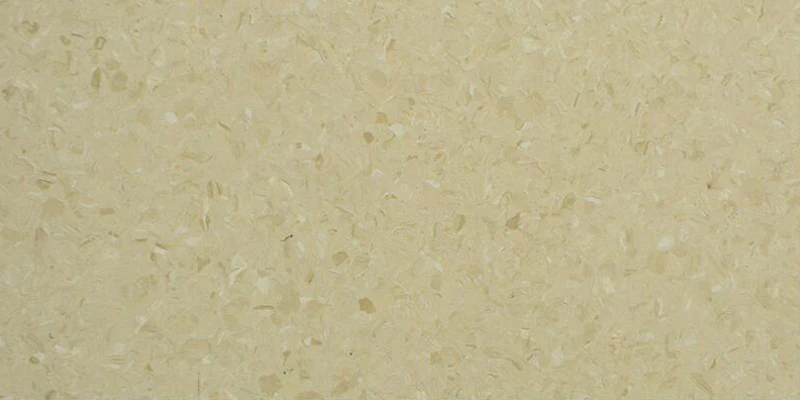

JHPNG6010

JHPNG6011

JHPNG6012

JHPNG6014

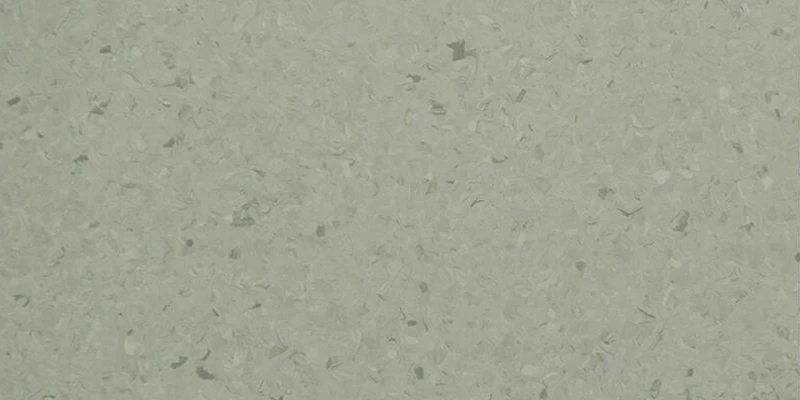

JHPNG6015

JHPNG6017

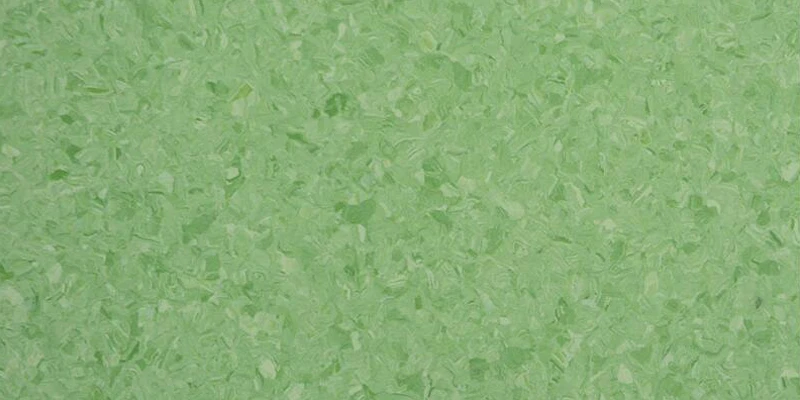

JHPNG6018

JHPNG6019

JHPNG6020

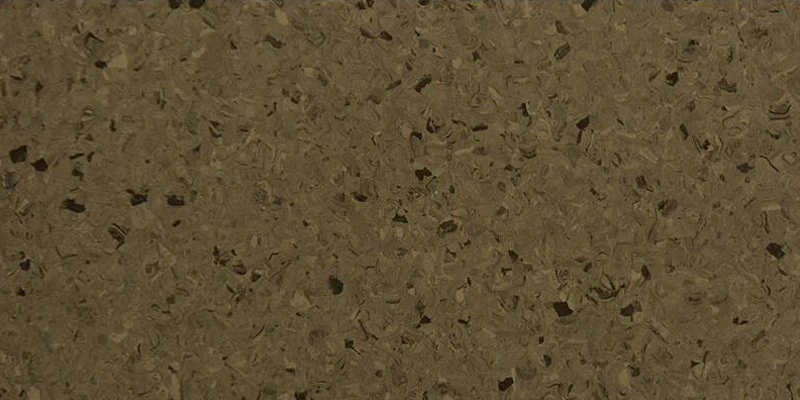

JHPNG6021

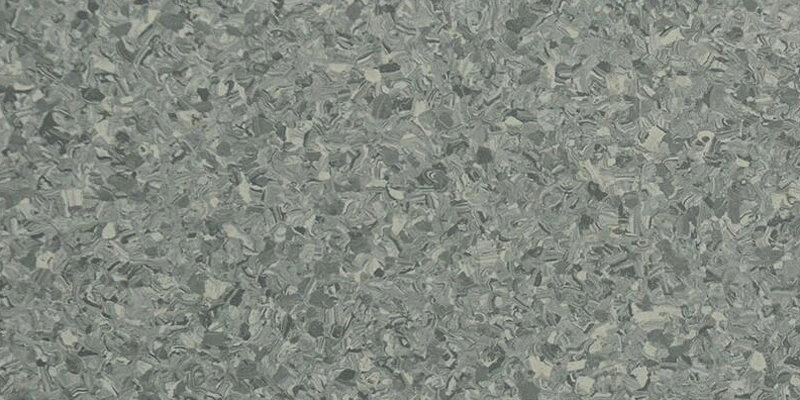

JHPNG6023

JHPNG6024

JHPNG6025

JHPNG6026

JHPNG6027

JHPNU3001

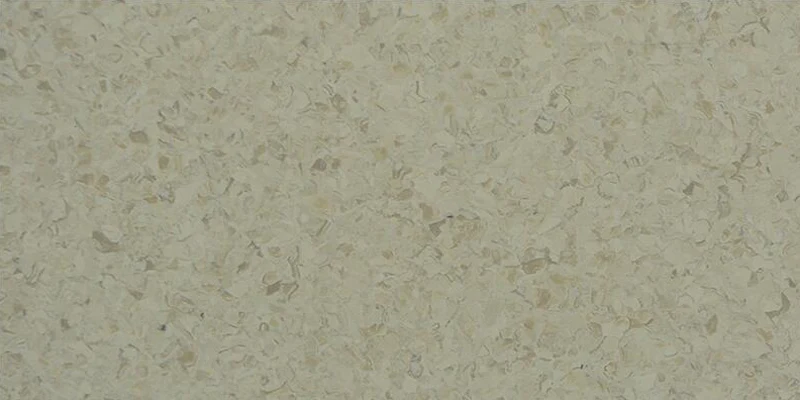

JHPNU3002

JHPNU3003

JHPNU3005

JHPNU3006

JHPNU3007

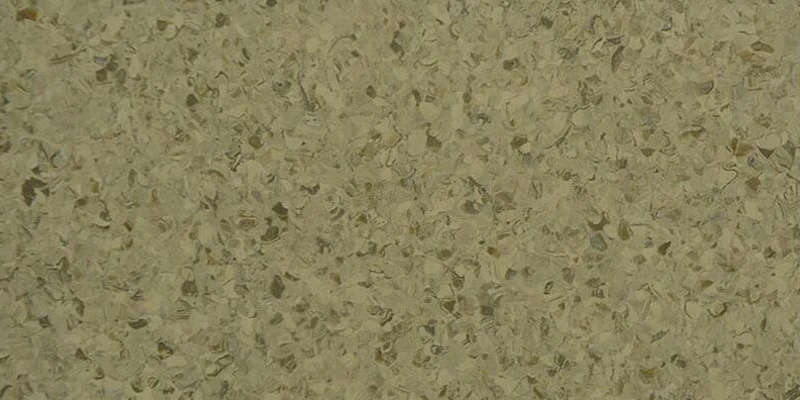

JHPNU3008

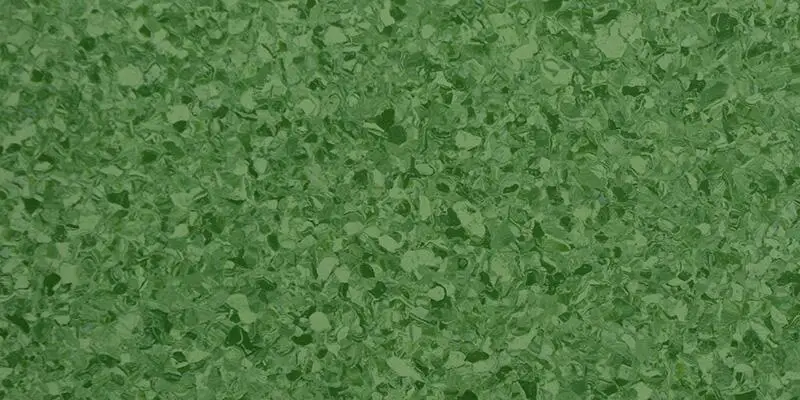

JHPNU3010

JHPNU3012

JHPNU3013

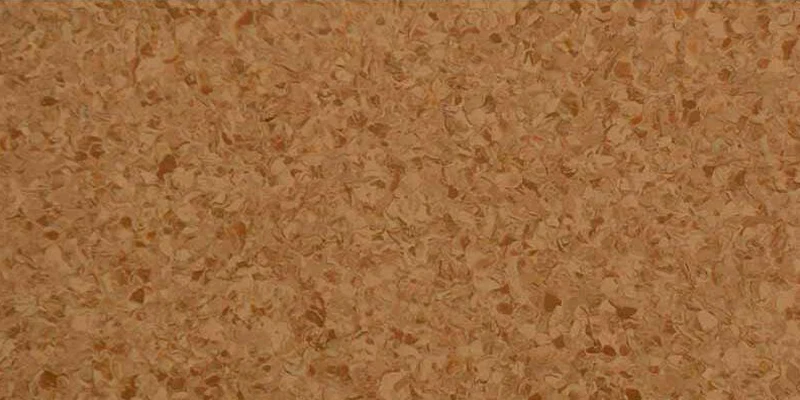

JHPNU3016

JHPNU3017

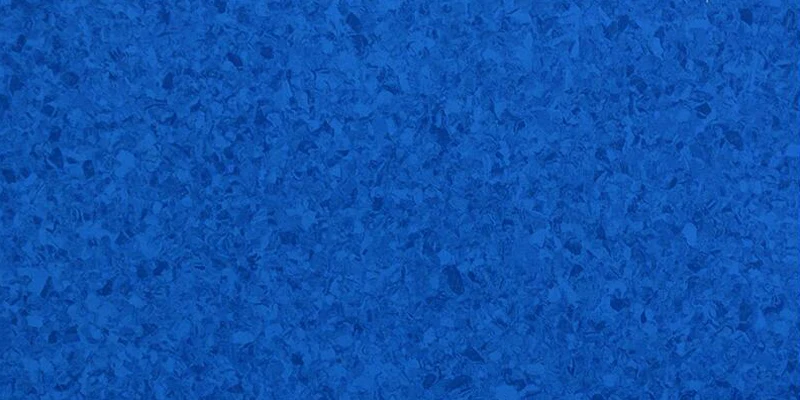

JHPNU3018

JHPNU3019

JHPNU3020

Duozi

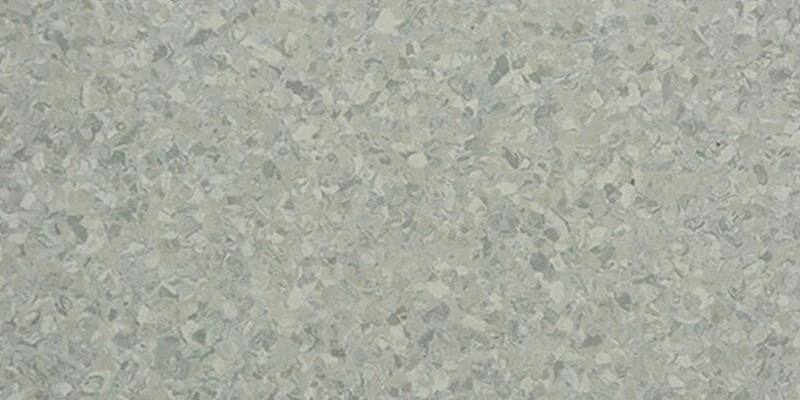

JHPNU3001

JHPNU3002

JHPNU3003

JHPNU3005

JHPNU3006

JHPNU3007

JHPNU3008

JHPNU3010

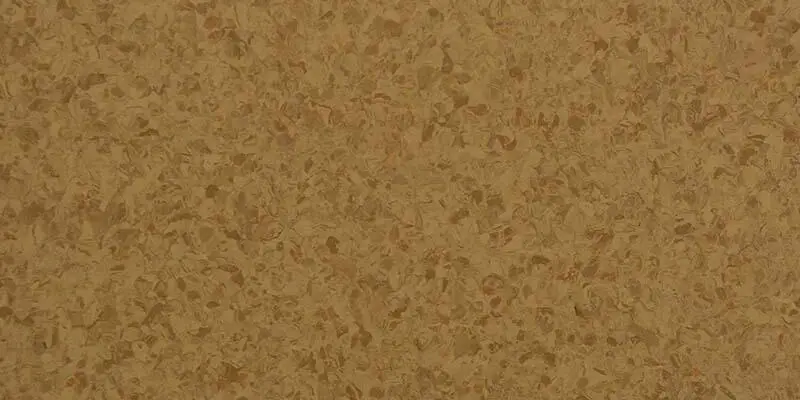

JHPNU3012

JHPNU3013

JHPNU3016

JHPNU3017

JHPNU3018

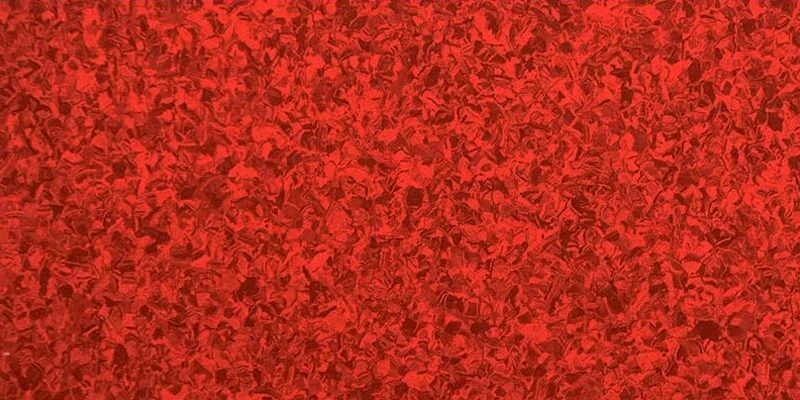

JHPNU3019

JHPNU3020

JHPNY-140701

JHPNY-140702

JHPNY-140703

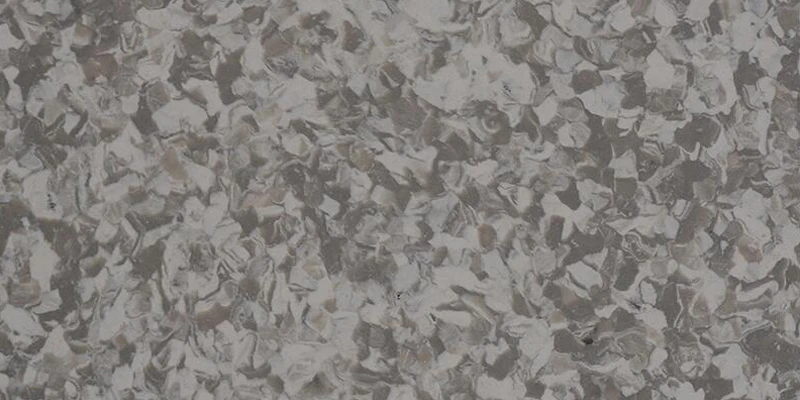

JHPNY-140704

JHPNY-140705

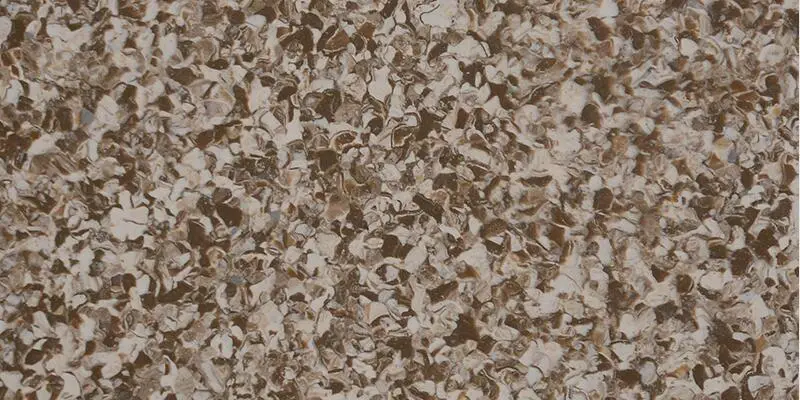

JHPNY-140706

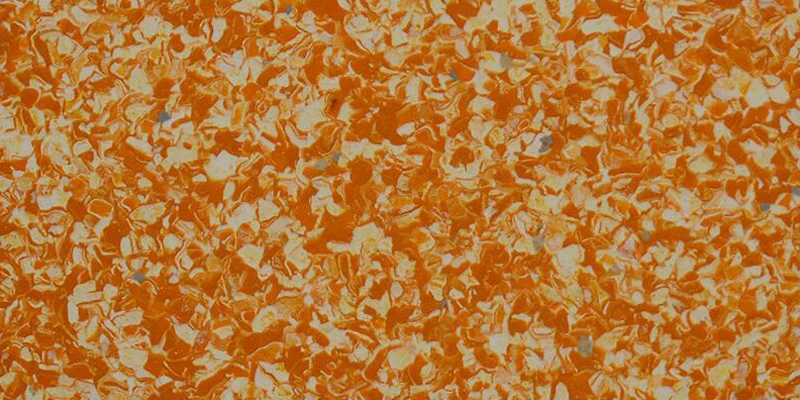

JHPNY-140707

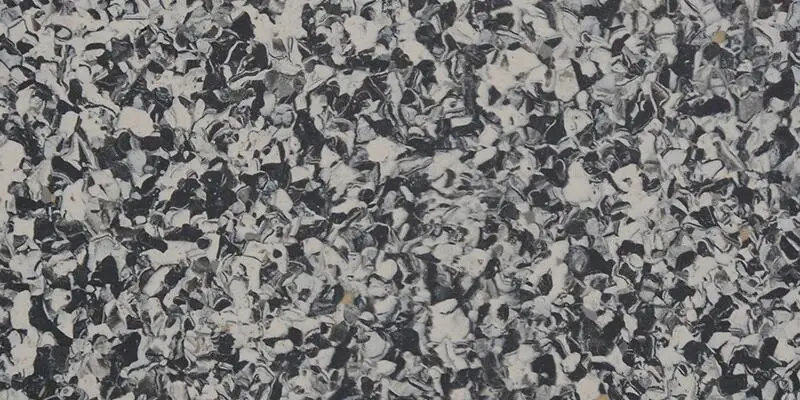

JHPNY-140708

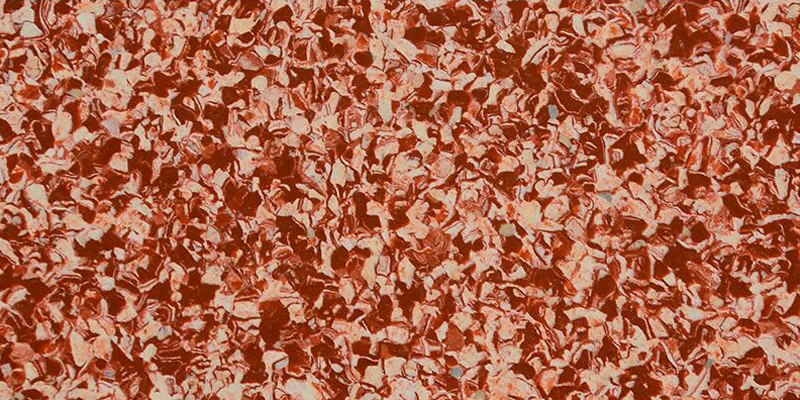

JHPNY-140709

JHPNY-140710

JHPNY-140711

JHPNY-140712

JHPNY-140713

JHPNY-140714

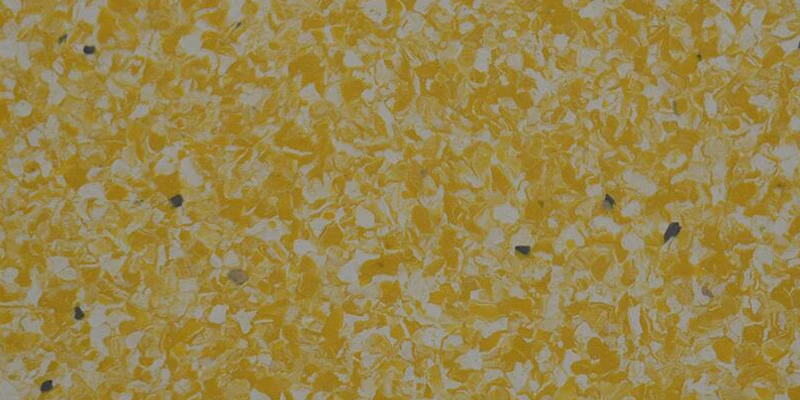

JHPNY-140715

Yingzi

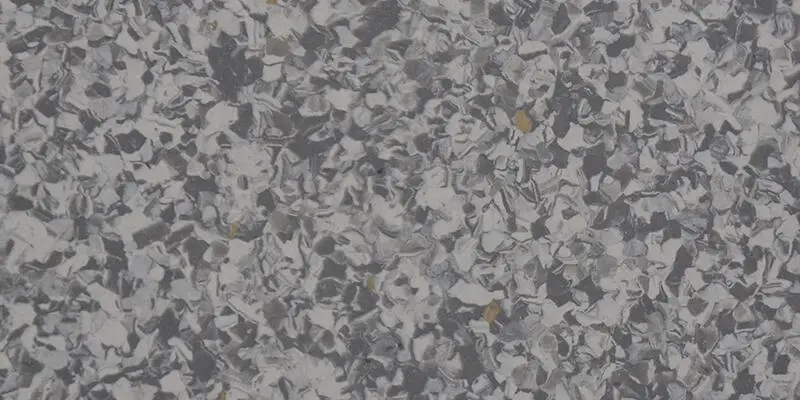

JHPNY-140701

JHPNY-140702

JHPNY-140703

JHPNY-140704

JHPNY-140705

JHPNY-140706

JHPNY-140707

JHPNY-140708

JHPNY-140709

JHPNY-140710

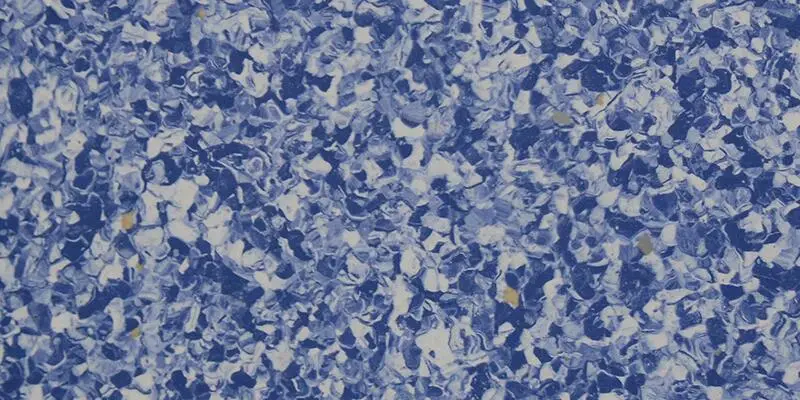

JHPNY-140711

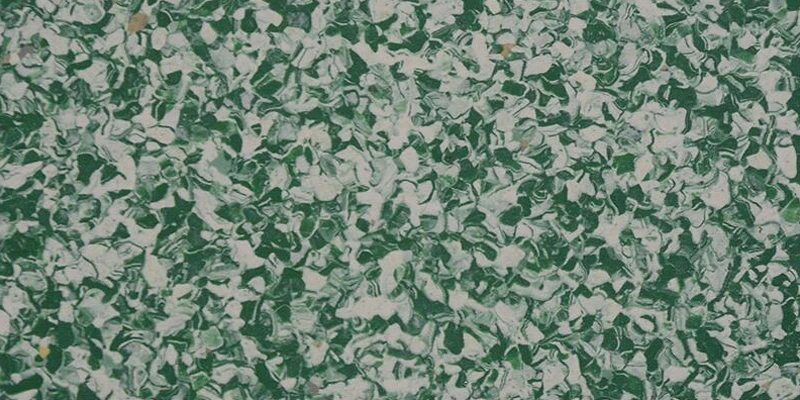

JHPNY-140712

JHPNY-140713

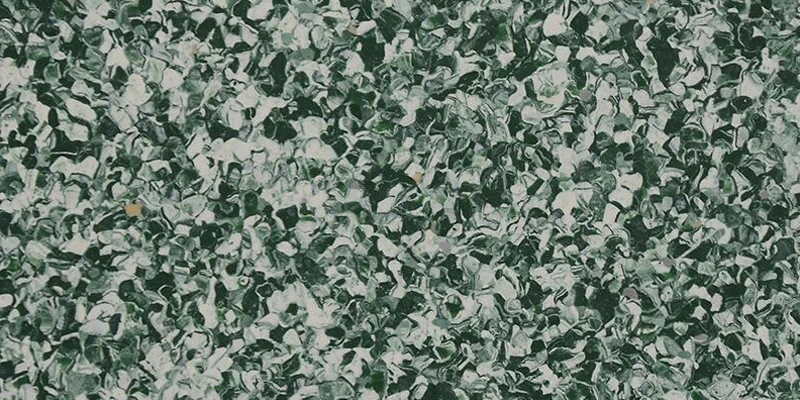

JHPNY-140714

JHPNY-140715

JHPNT2-59001

JHPNT2-59002

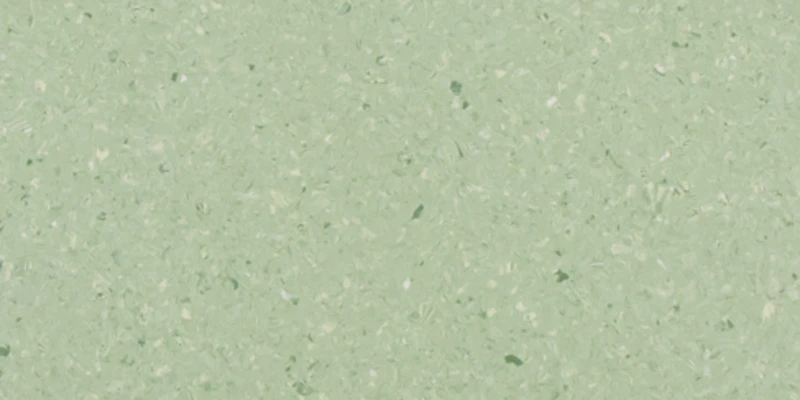

JHPNT2-59003

JHPNT2-59004

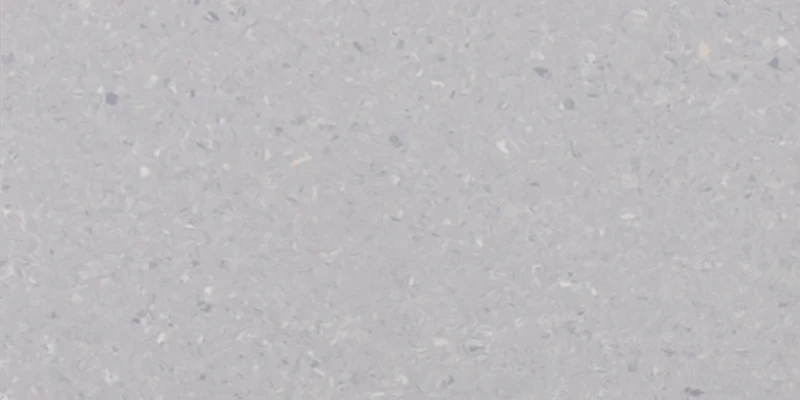

JHPNT2-59005

JHPNT2-59006

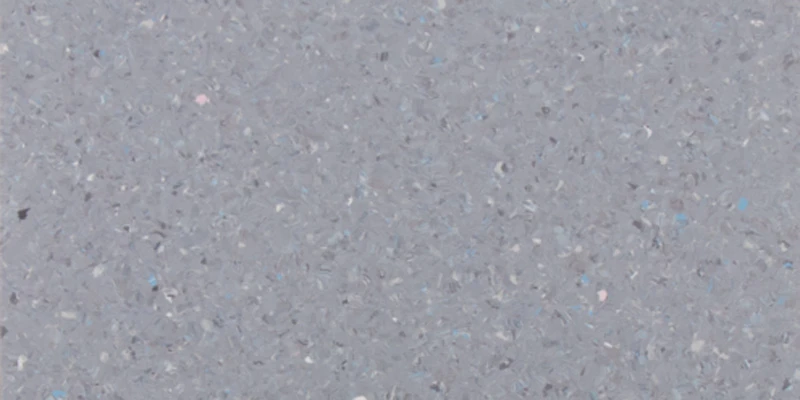

JHPNT2-59007

JHPNT2-59008

JHPNT2-59009

JHPNT2-59010

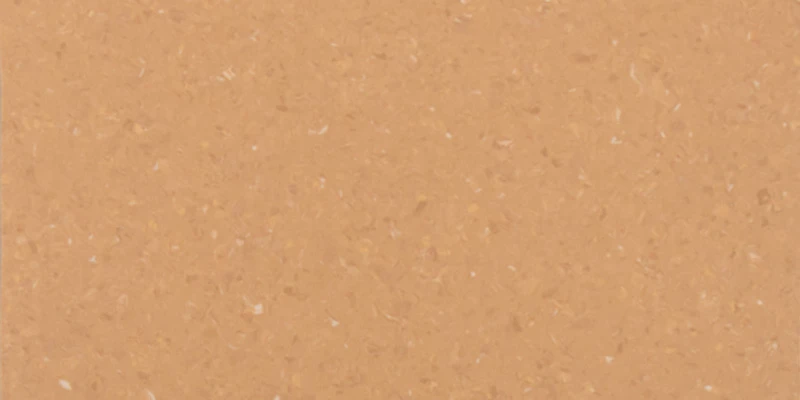

JHPNT2-59013

JHPNT2-59014

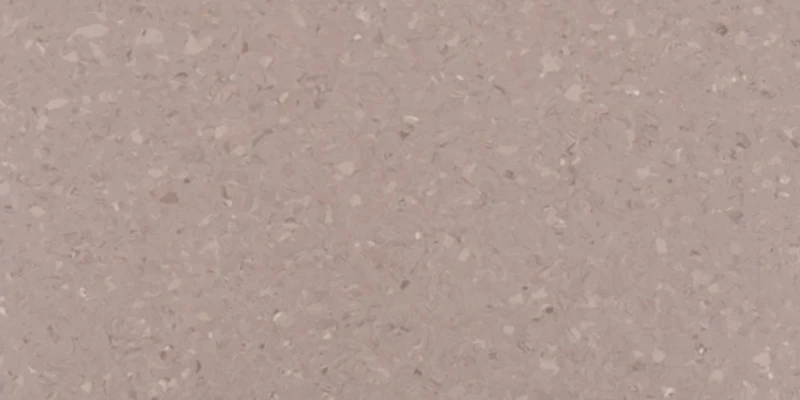

JHPNT2-59015

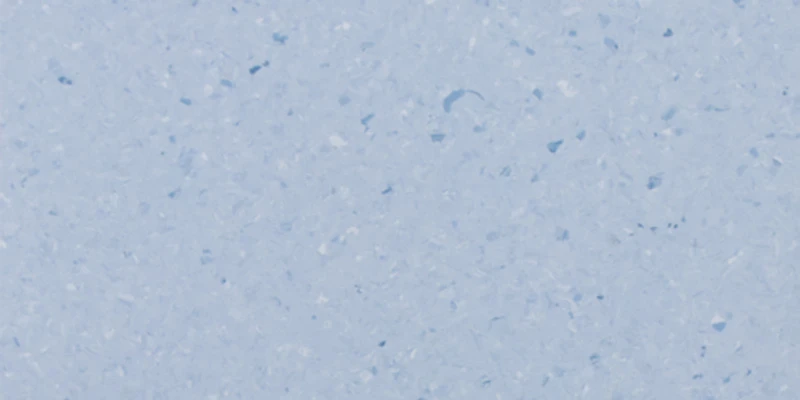

JHPNT2-59016

JHPNT2-59017

Nas-T2

JHPNT2-59001

JHPNT2-59002

JHPNT2-59003

JHPNT2-59004

JHPNT2-59005

JHPNT2-59006

JHPNT2-59007

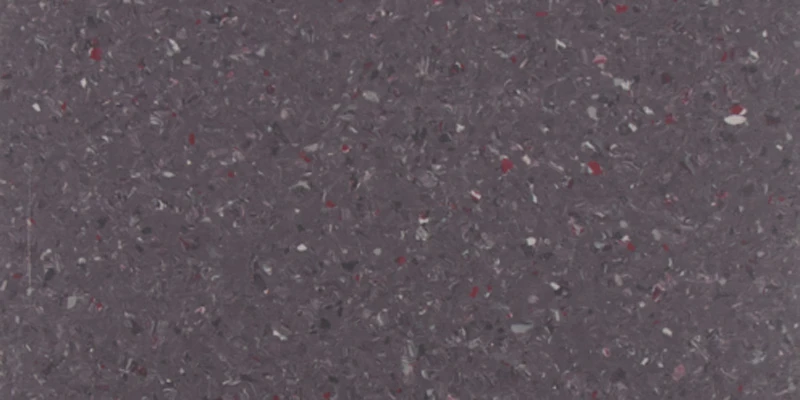

JHPNT2-59008

JHPNT2-59009

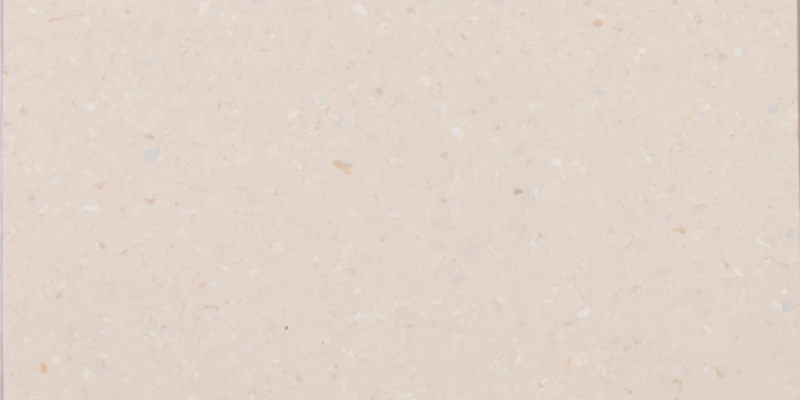

JHPNT2-59010

JHPNT2-59013

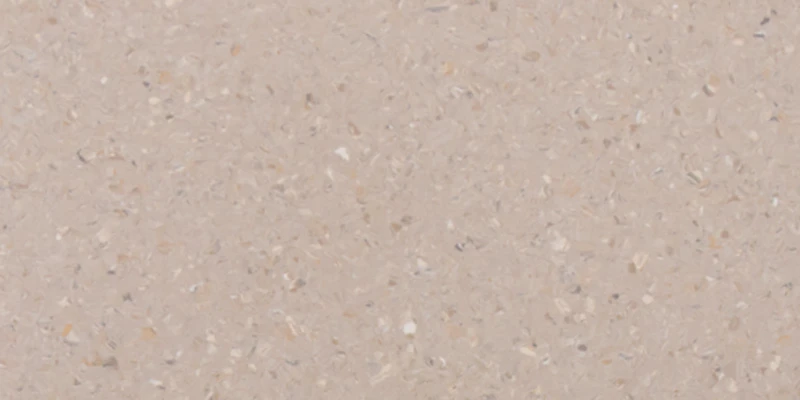

JHPNT2-59014

JHPNT2-59015

JHPNT2-59016

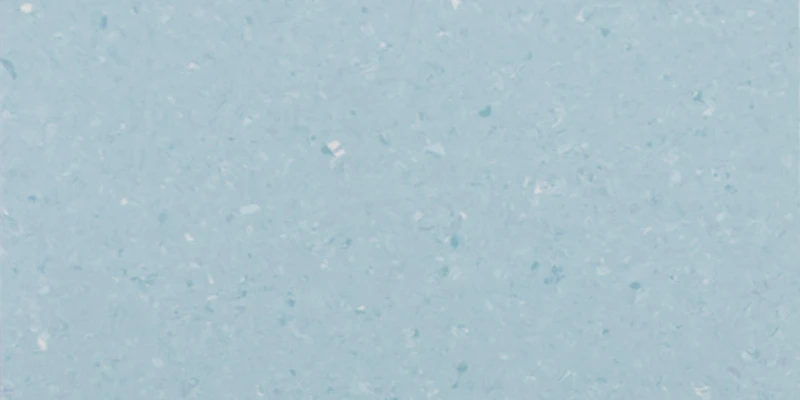

JHPNT2-59017

JHPNR182050

JHPNR182051

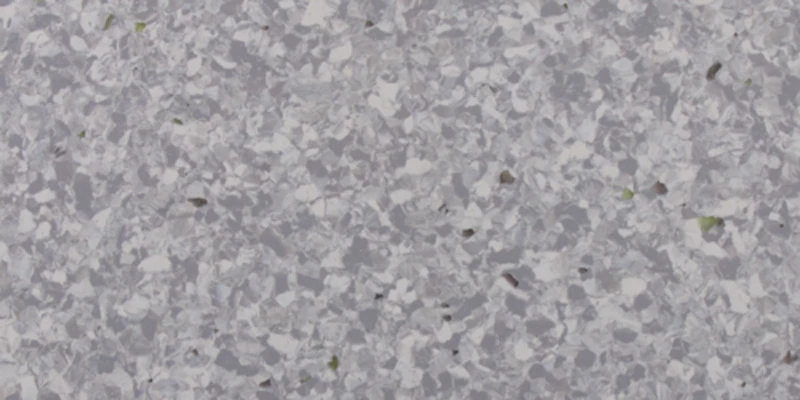

JHPNR182052

JHPNR182054

JHPNR182055

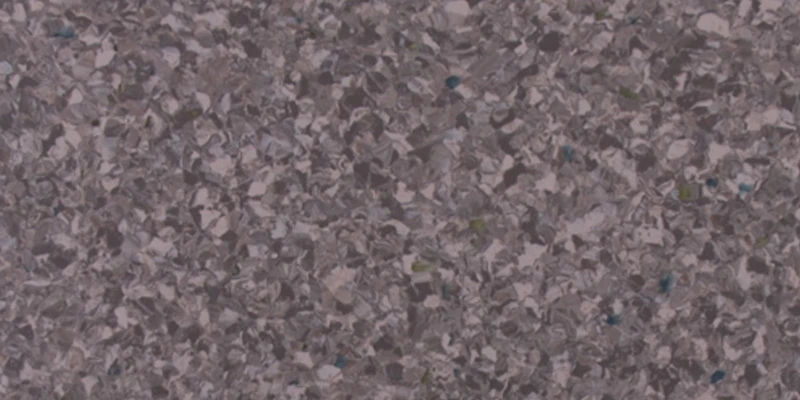

JHPNR182056

JHPNR182057

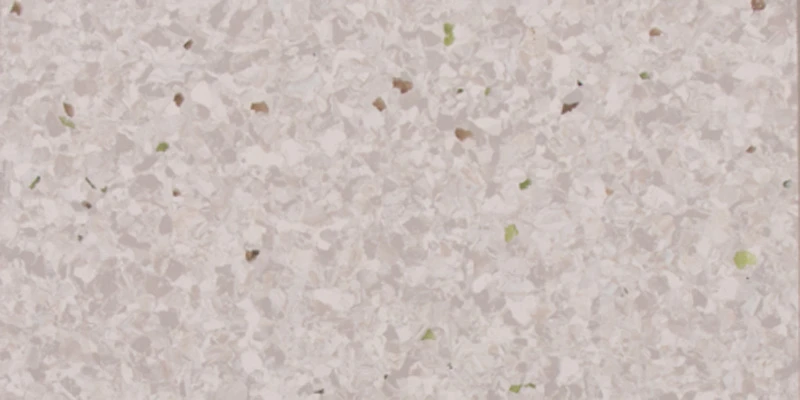

JHPNR182058

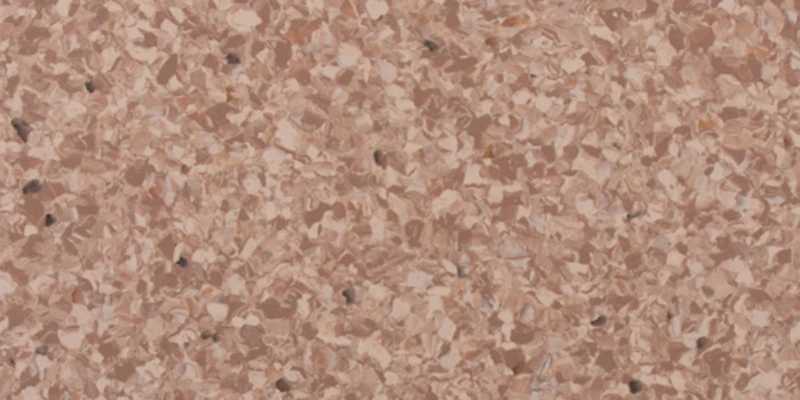

JHPNR182059

JHPNR182060

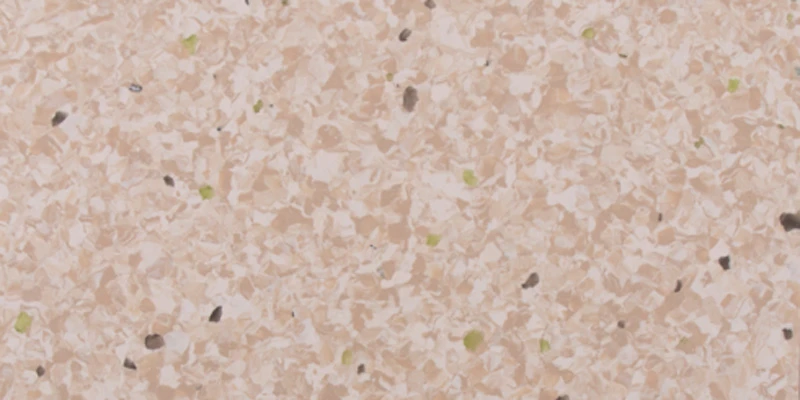

JHPNR182061

JHPNR182062

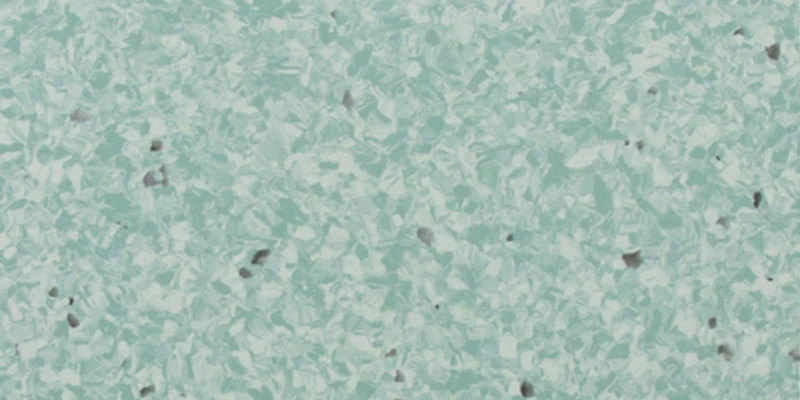

JHPNR182063

JHPNR182064

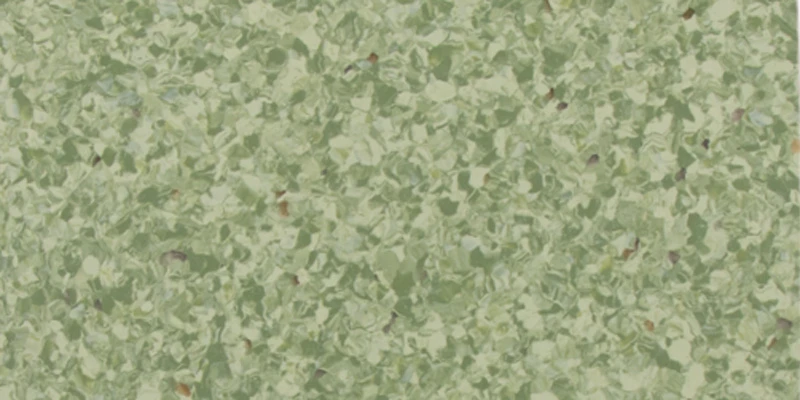

JHPNR182065

Ruizi

JHPNR182050

JHPNR182051

JHPNR182052

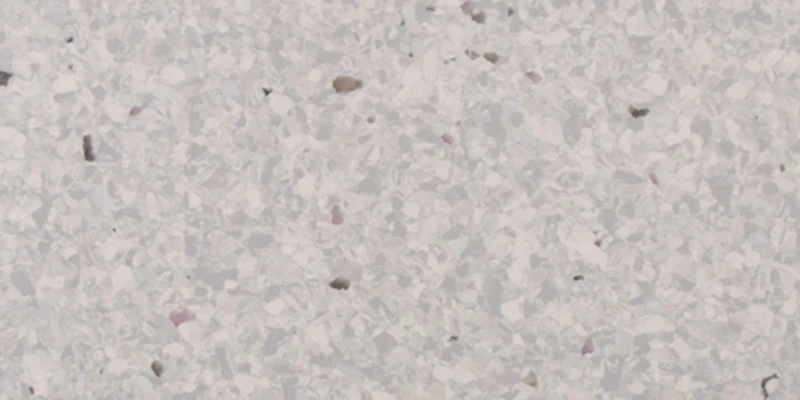

JHPNR182054

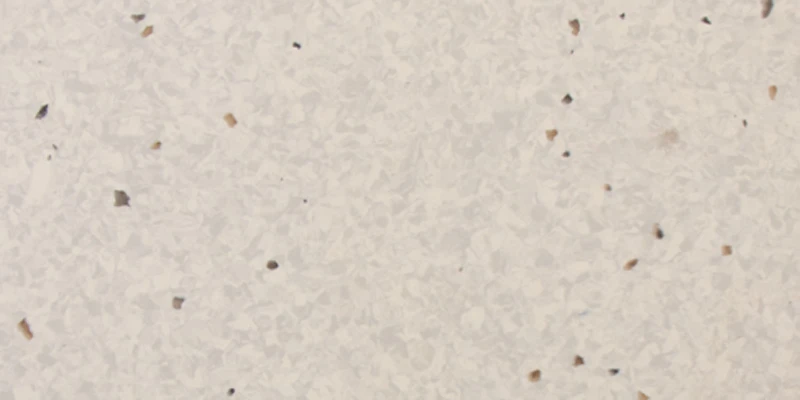

JHPNR182055

JHPNR182056

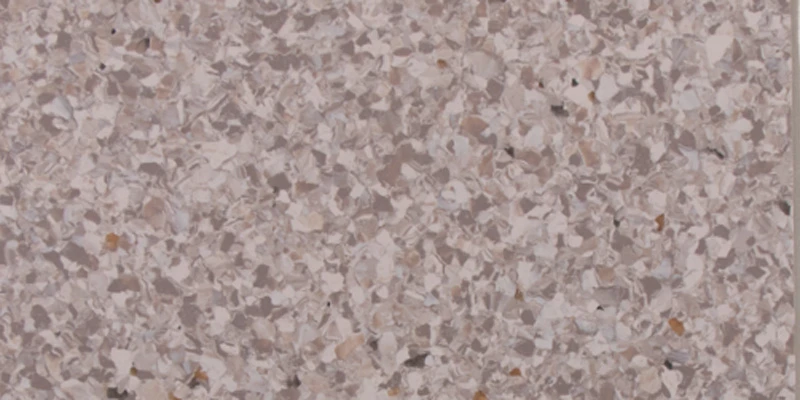

JHPNR182057

JHPNR182058

JHPNR182059

JHPNR182060

JHPNR182061

JHPNR182062

JHPNR182063

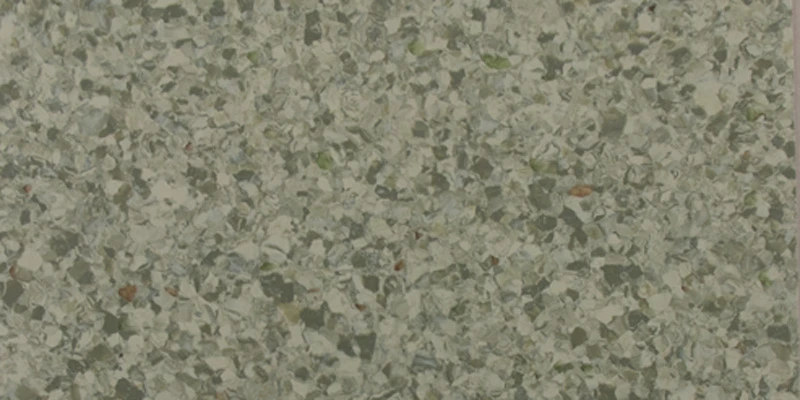

JHPNR182064

JHPNR182065

JHPNT19001

JHPNT19002

JHPNT19022

JHPNT19101

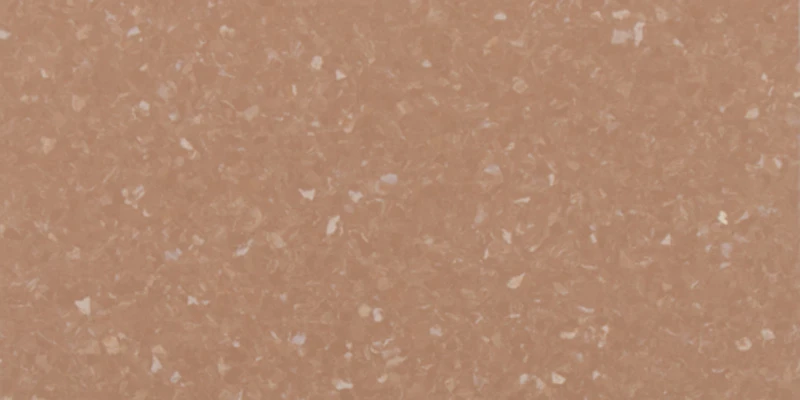

JHPNT19119

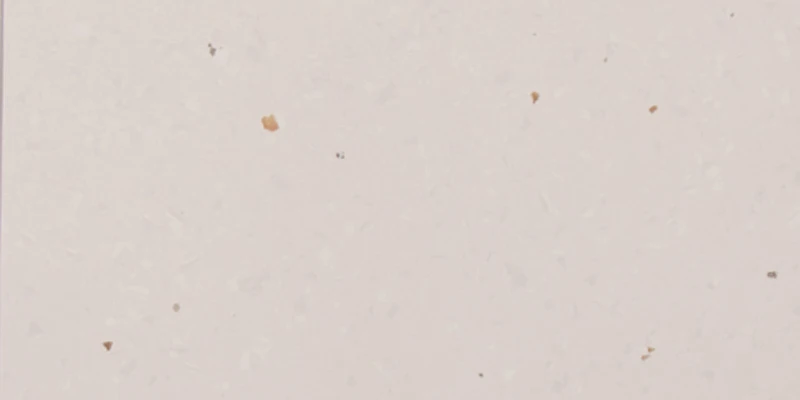

JHPNT19157

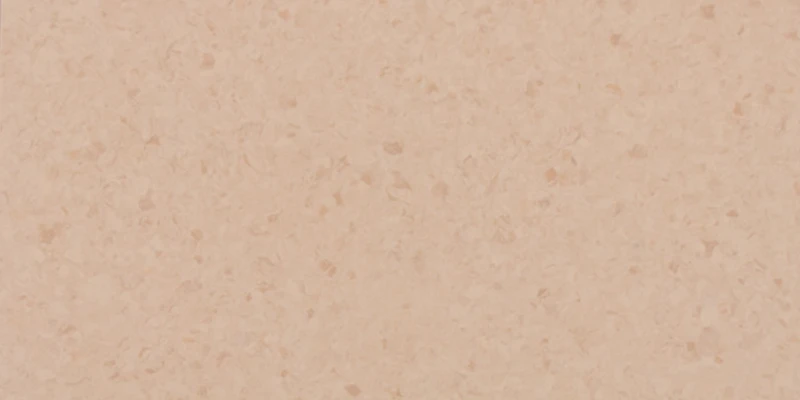

JHPNT19201

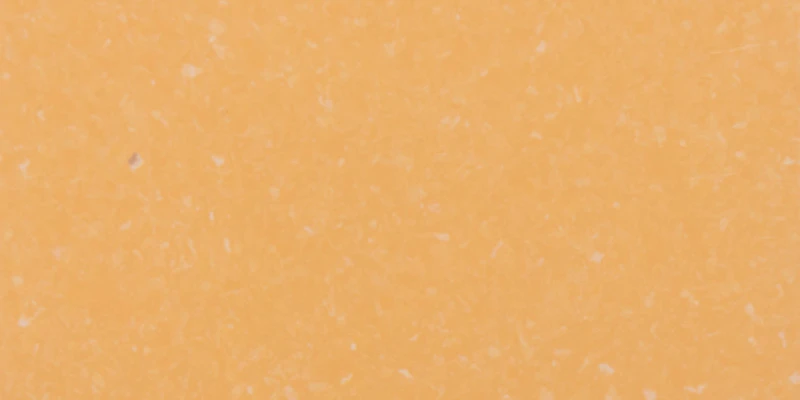

JHPNT19306

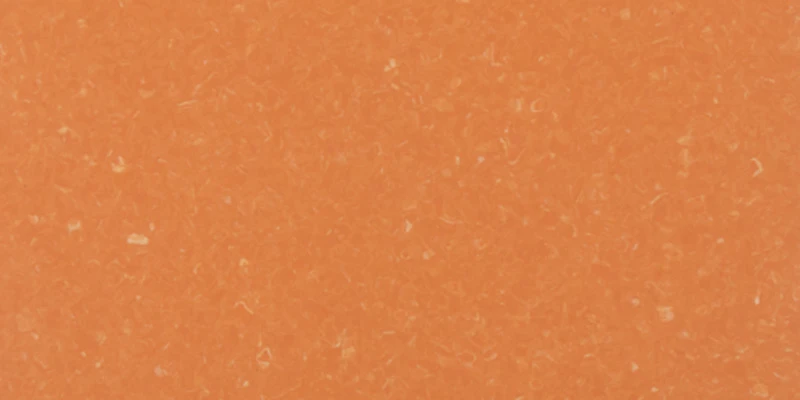

JHPNT19307

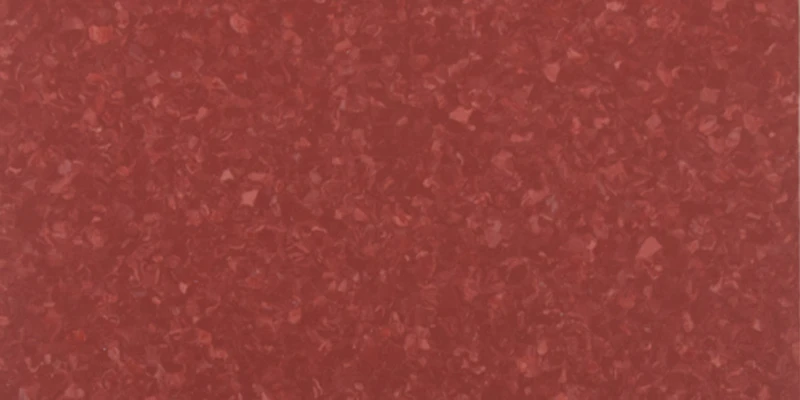

JHPNT19416

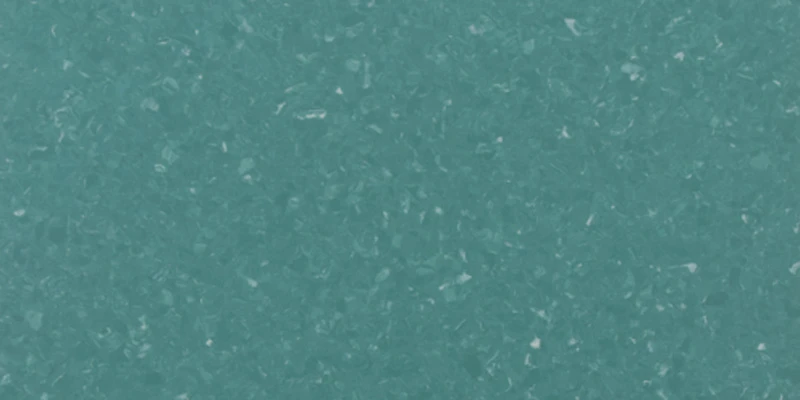

JHPNT19501

JHPNT19502

JHPNT19614

JHPNT190154

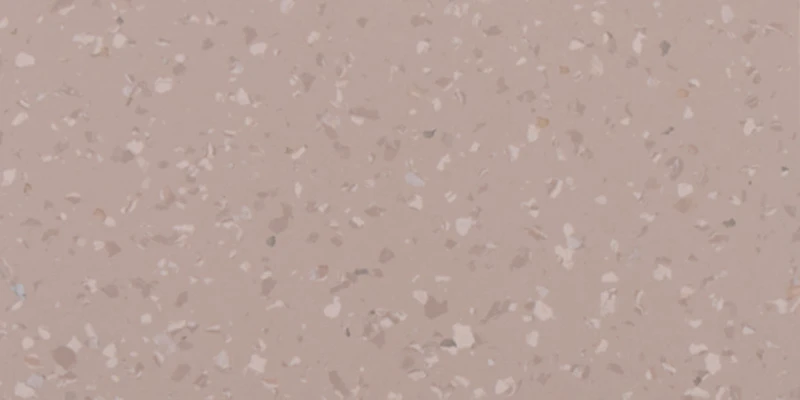

JHPNT190155

Tianzi

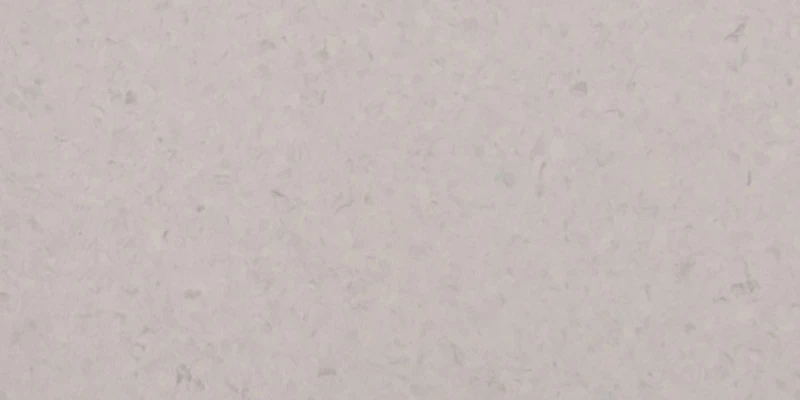

JHPNT19001

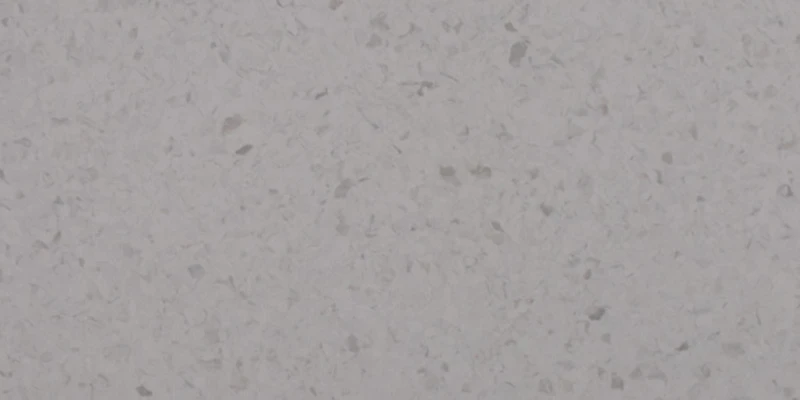

JHPNT19002

JHPNT19022

JHPNT19101

JHPNT19119

JHPNT19157

JHPNT19201

JHPNT19306

JHPNT19307

JHPNT19416

JHPNT19501

JHPNT19502

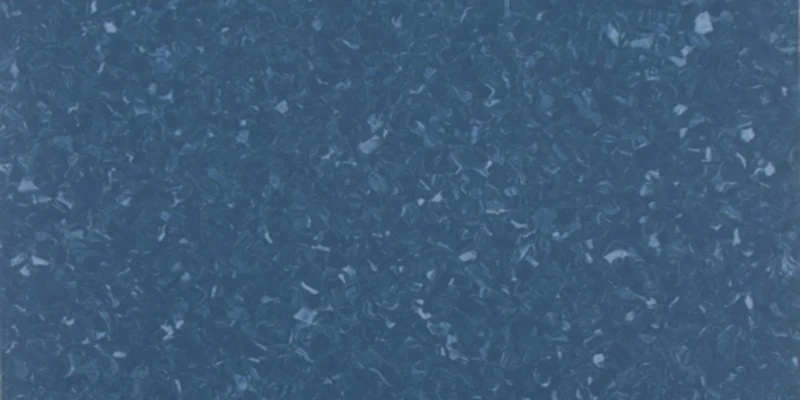

JHPNT19614

JHPNT190154

JHPNT190155

Directional Homogeneous PVC Flooring

Overview

Directional homogeneous PVC flooring refers to a homogeneous PVC flooring where the surface patterns, textures, or designs exhibit a distinct directional orientation. During installation, the flooring must be aligned uniformly to ensure a consistent overall visual effect.

Directional patterns. The grains, stripes, or patterns have a clear directional arrangement. Uniform alignment during installation is essential to achieve a complete and aesthetically pleasing outcome.
Prominent visual effect. It creates a sense of spatial extension, dynamism, or regularity, making it ideal for spaces where design sophistication is prioritized.
High installation standards. It requires careful pre-installation planning to avoid misalignment or mismatched seams.
Suitable applications. High-end commercial spaces, art galleries, hotels, office areas, and similar environments.

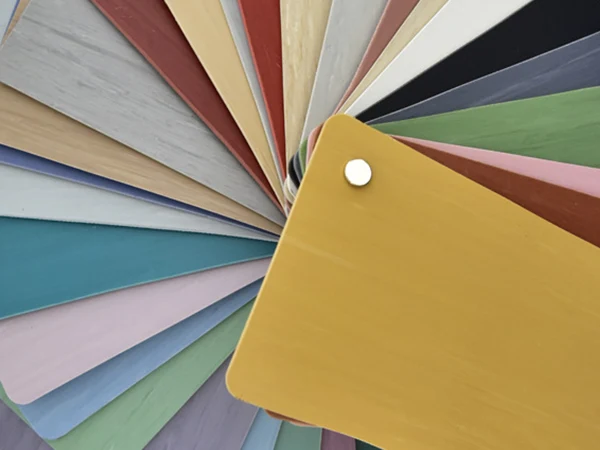

Directional homogeneous PVC flooring

Specifications

Table 2: Directional Roll Flooring Technical Specifications
Application Areas
Thickness	EN ISO 24346	2.0 / 2.5 / 3.0 mm
Width/length	EN ISO 24341	2.0 m × 20 m
Weight	EN ISO 23997	2.0 mm: 3100 g/m²
Fire rating	GB 8624-2012	Class	B-S1
National building material test	GB 18586-2001	–	Good
Electrical resistance	EN 1081	Ω	> 3.0 × 10¹⁰
Dry slip resistance	EN 13893	–	≥ 0.3
Wet slip resistance	DIN 51130	Class	R9
Dimensional stability	EN 434-1994	%	≤ 0.4
Thermal conductivity	EN 12667	W/(m.k)	0.05
Wheel load test	EN 425	–	SUITABLE
Wear resistance	EN 660.2	mm³	≤ 3.5
Abrasion rating	EN 649	group	p
Residual indentation	EN ISO 24343.1	mm	Approx. 0.04
Color stability	EN ISO 105 B02	degree	6
Chemical resistance	EN ISO 26987	–	GOOD
Antibacterial properties	EN ISO 846-C	–	No bacterial growth
Toxic and hazardous substances test	GB 18586-2001	–	Compliant
Cleanability	ISO 22196(MRSA)	–	VERY GOOD
Footstep echo	EN ISO 10140/1 EN ISO 717/2	–	APPROX.+4DB
Surface Treatment	–	–	PUR
Widely suitable for public areas, administrative and commercial buildings, as well as high-traffic regions requiring easy cleaning, low maintenance and extended service life. Examples include hospitals, schools, laboratories, offices, and similar environments.

Patterns

Jingzi
Fengzi
Yazi

JHPDZ81001

JHPDZ81002

JHPDZ81003

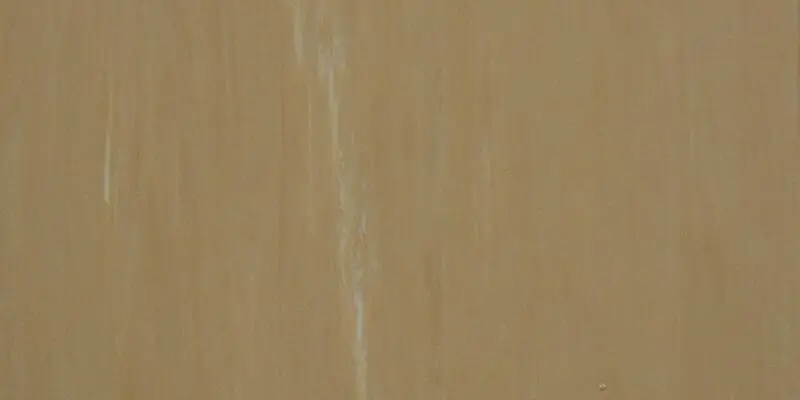

JHPDZ81004

JHPDZ81006

JHPDZ81007

JHPDZ81009

JHPDZ81010

JHPDZ81032

JHPDZ81033

JHPDZ81035

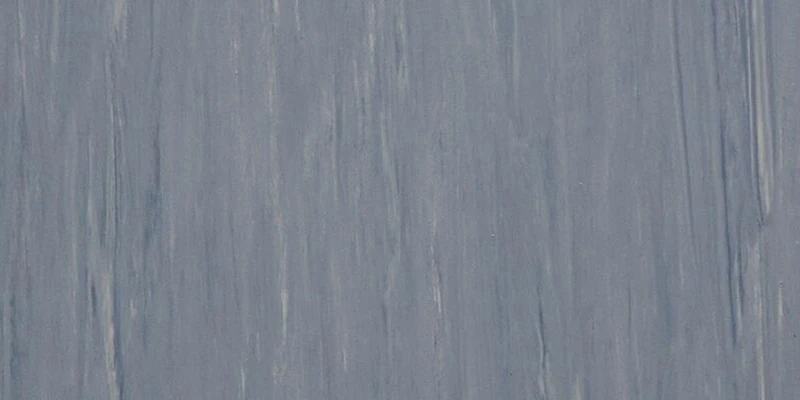

JHPDZ81036

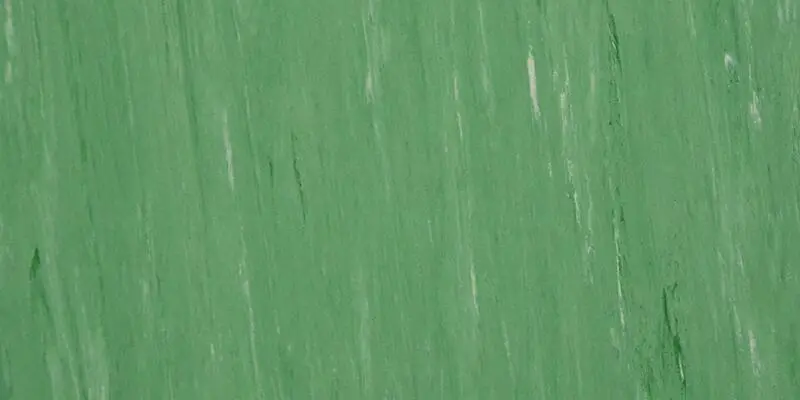

JHPDZ81037

JHPDZ81040

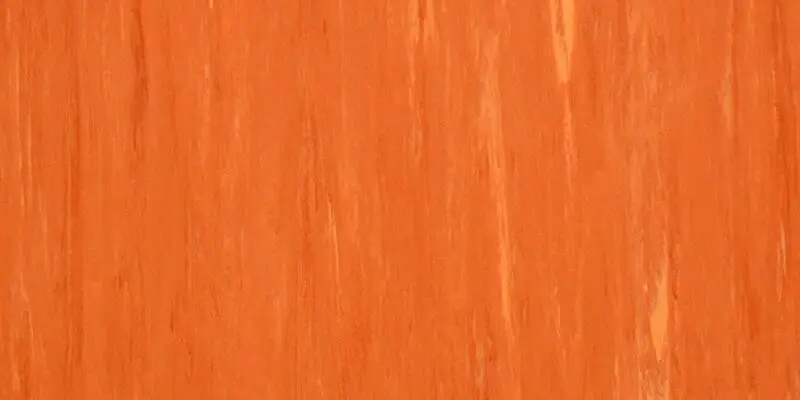

JHPDZ81055

Jingzi

JHPDZ81001

JHPDZ81002

JHPDZ81003

JHPDZ81004

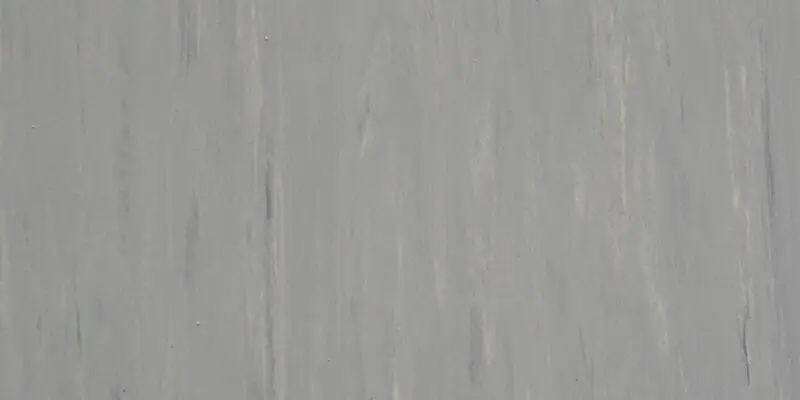

JHPDZ81006

JHPDZ81007

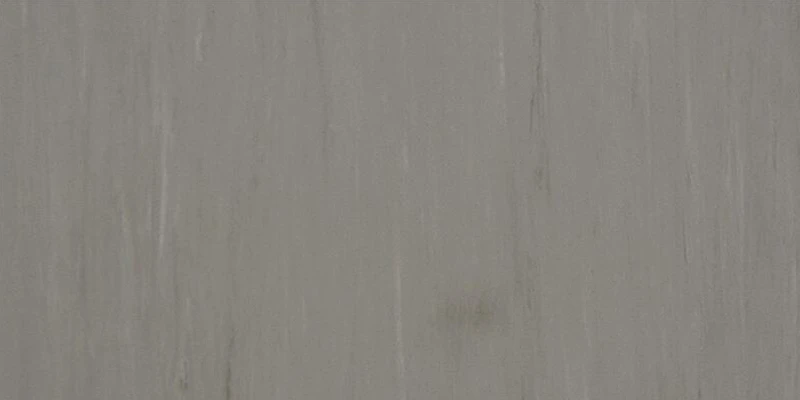

JHPDZ81009

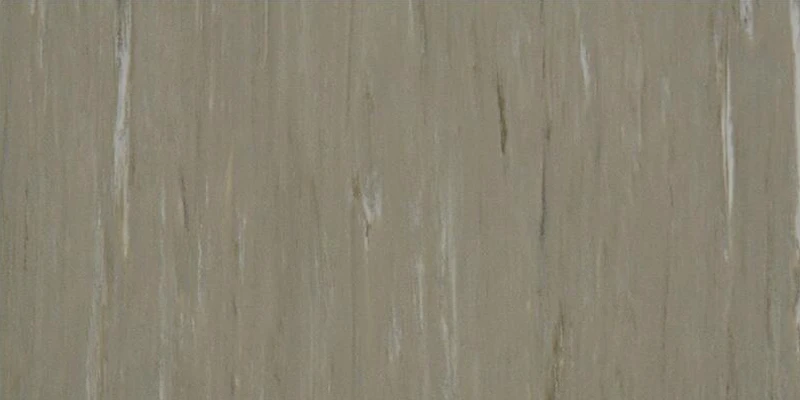

JHPDZ81010

JHPDZ81032

JHPDZ81033

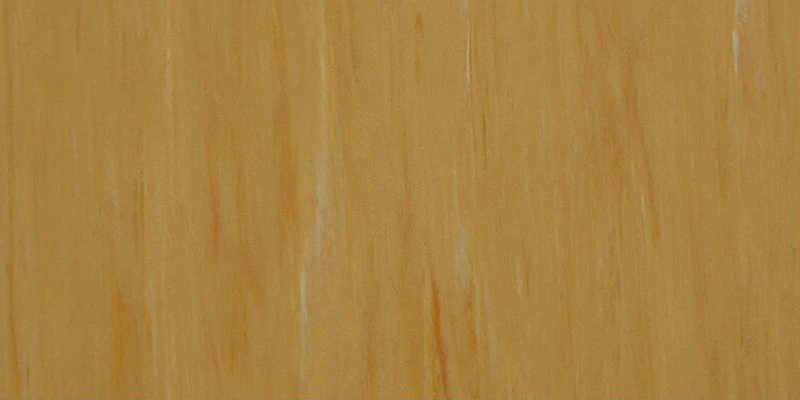

JHPDZ81035

JHPDZ81036

JHPDZ81037

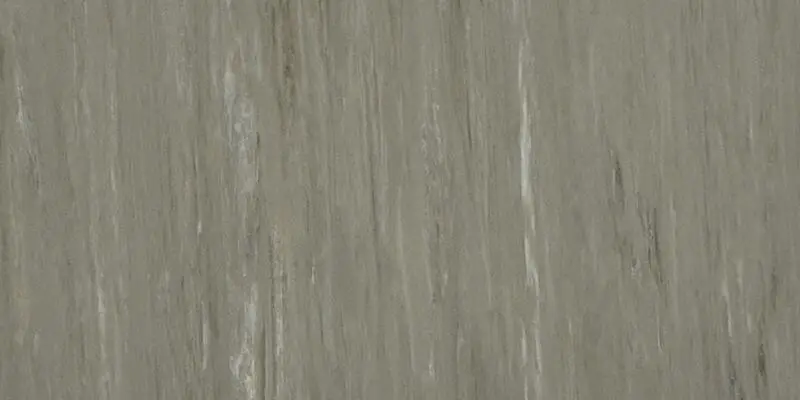

JHPDZ81040

JHPDZ81055

JHPDF6001

JHPDF6002

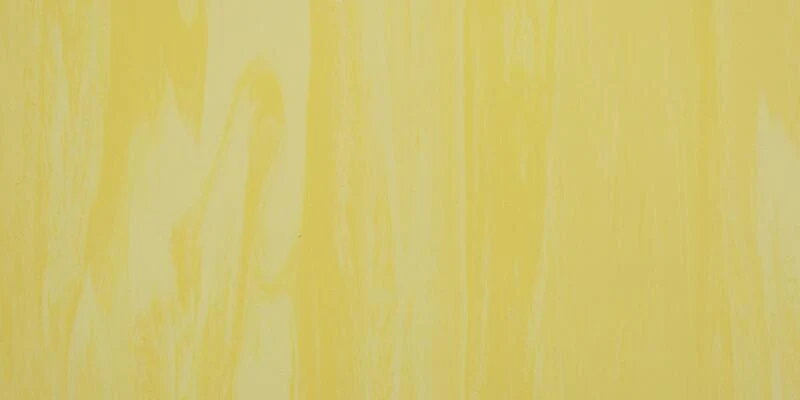

JHPDF6003

JHPDF6004

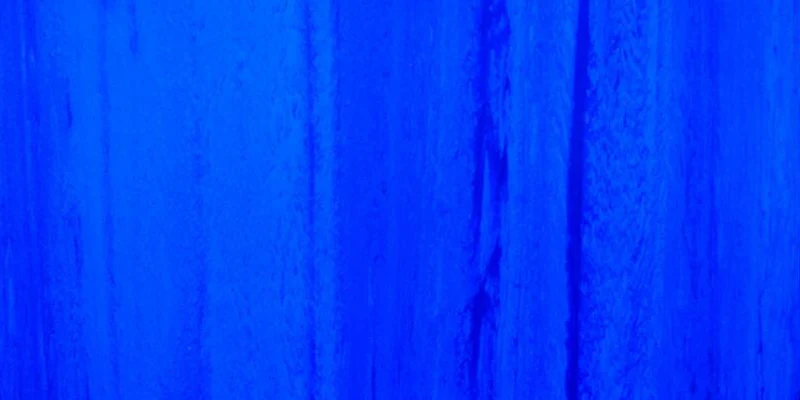

JHPDF6005

JHPDF6006

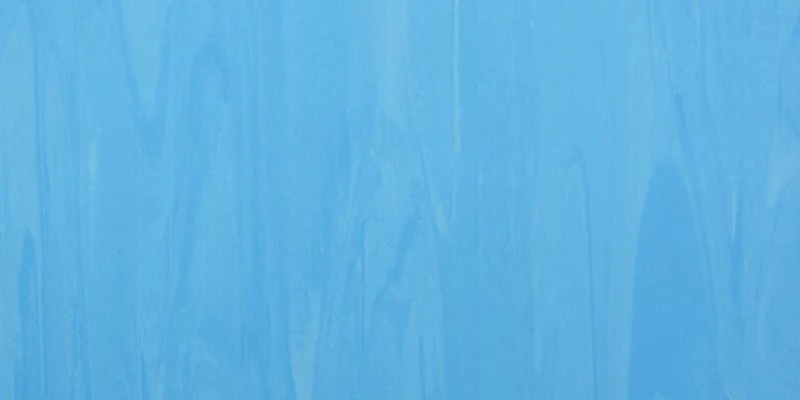

JHPDF6007

JHPDF6008

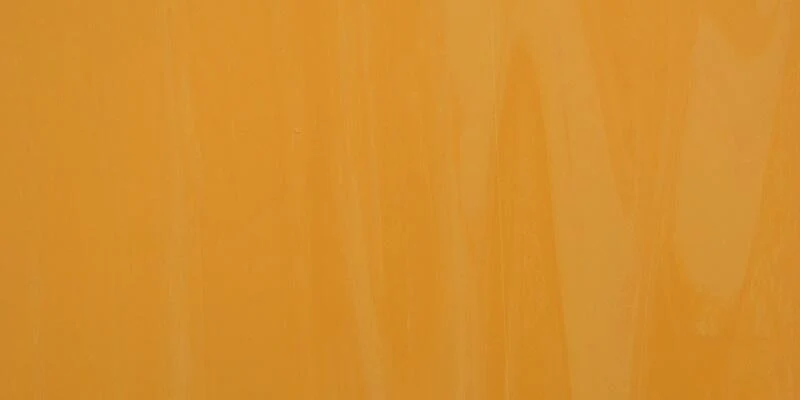

JHPDF6009

JHPDF6010

JHPDF6011

JHPDF6012

JHPDF6013

JHPDF6014

JHPDF6016

Fengzi

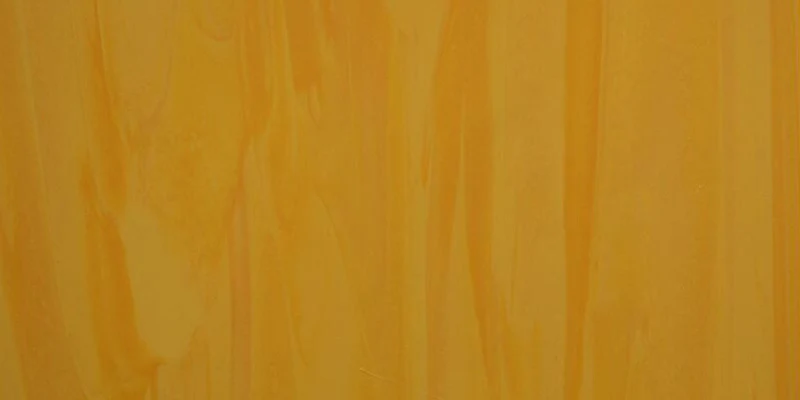

JHPDF6001

JHPDF6002

JHPDF6003

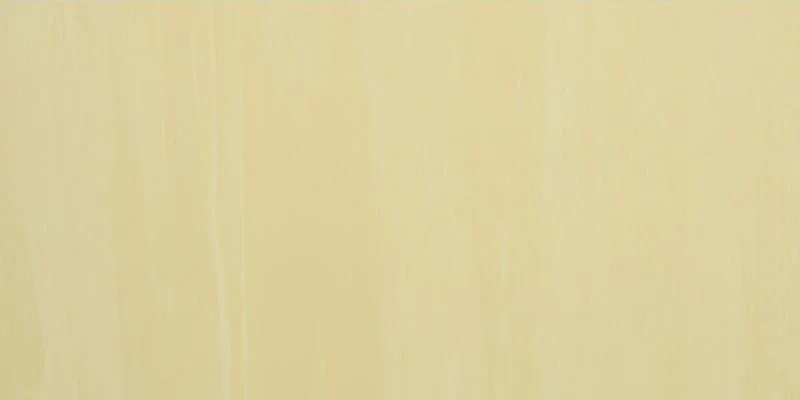

JHPDF6004

JHPDF6005

JHPDF6006

JHPDF6007

JHPDF6008

JHPDF6009

JHPDF6010

JHPDF6011

JHPDF6012

JHPDF6013

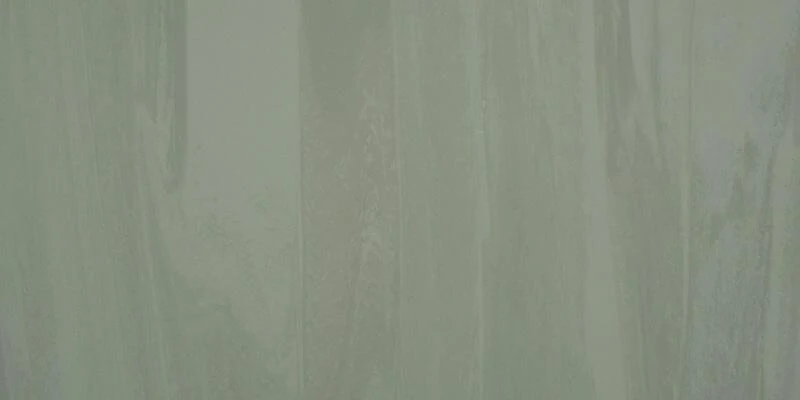

JHPDF6014

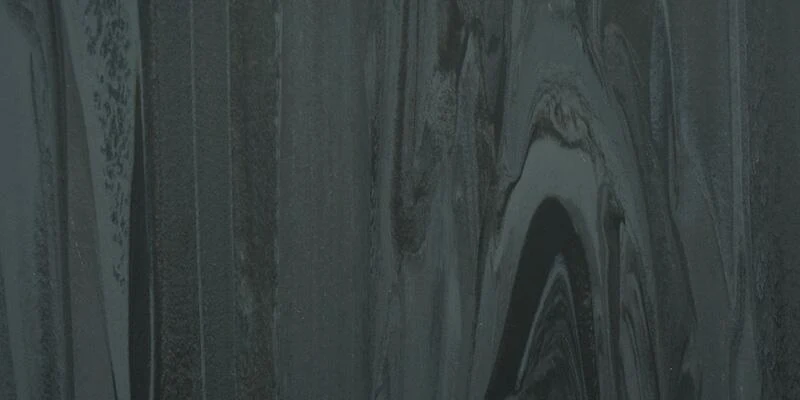

JHPDF6016

JHPDA7001

JHPDA7002

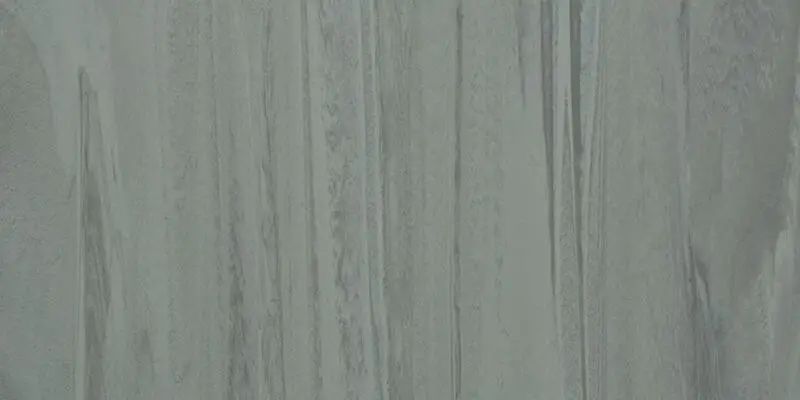

JHPDA7003

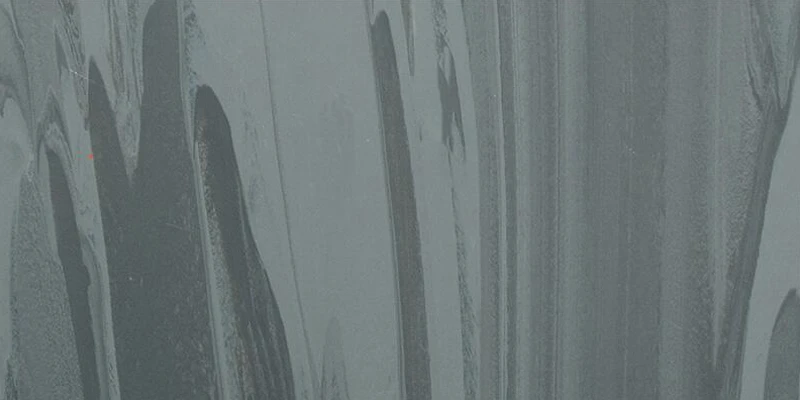

JHPDA7004

JHPDA7005

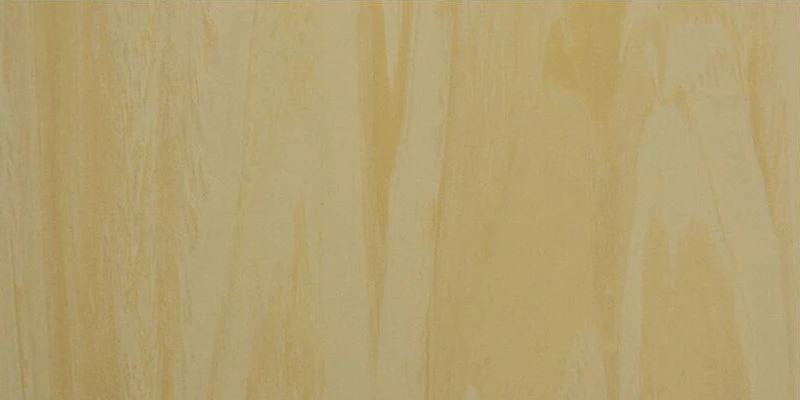

JHPDA7006

JHPDA7007

JHPDA7008

JHPDA7009

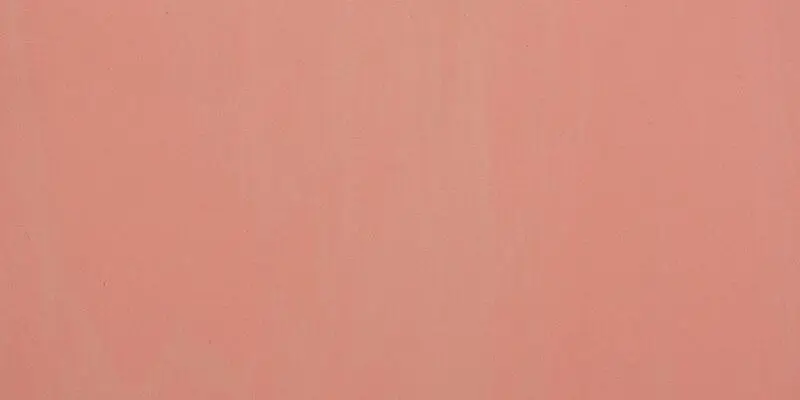

JHPDA7010

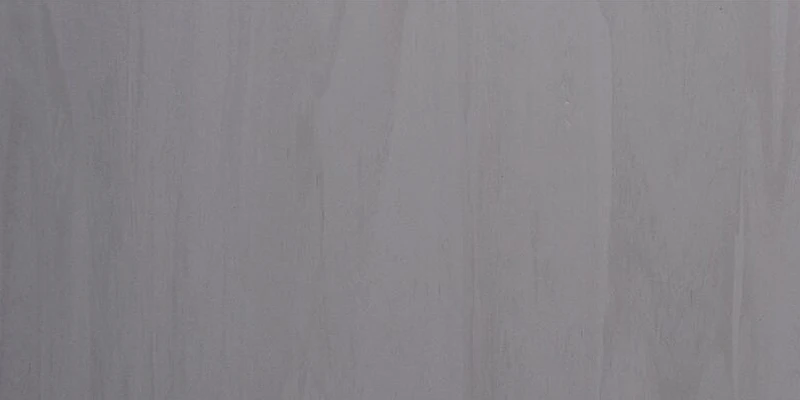

JHPDA7011

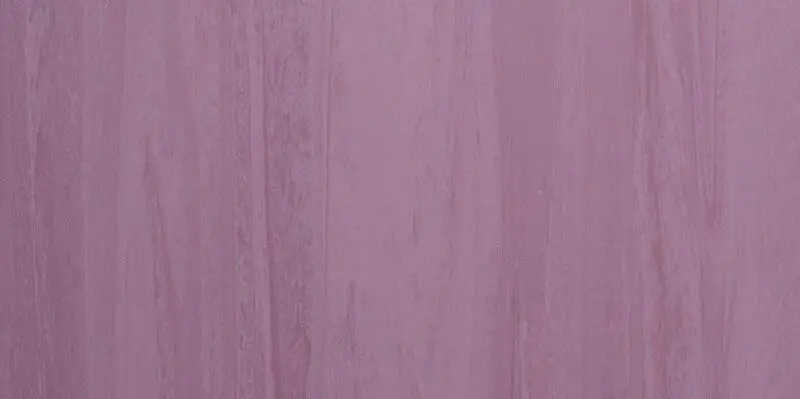

JHPDA7012

JHPDA7013

JHPDA7014

JHPDA7015

Yazi

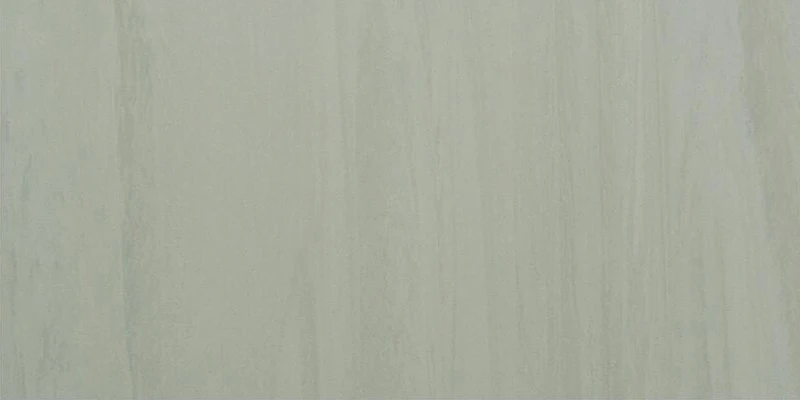

JHPDA7001

JHPDA7002

JHPDA7003

JHPDA7004

JHPDA7005

JHPDA7006

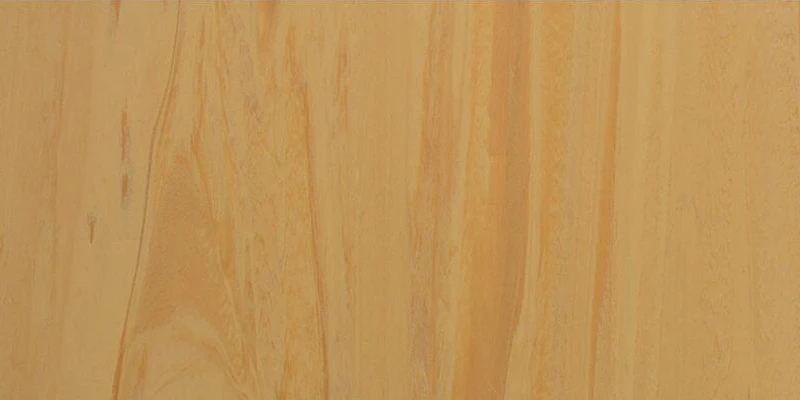

JHPDA7007

JHPDA7008

JHPDA7009

JHPDA7010

JHPDA7011

JHPDA7012

JHPDA7013

JHPDA7014

JHPDA7015

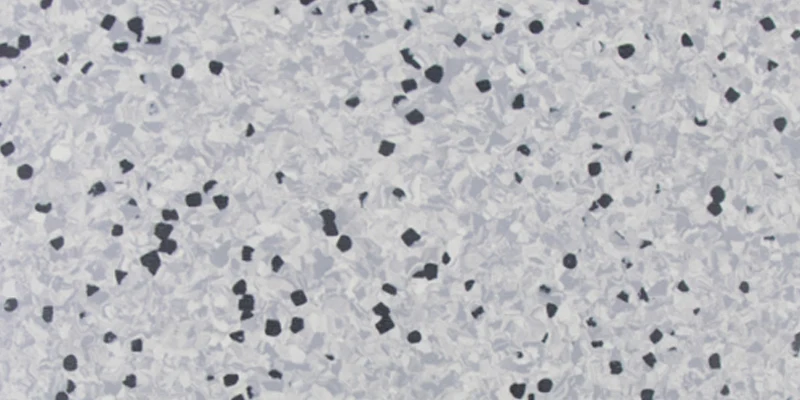

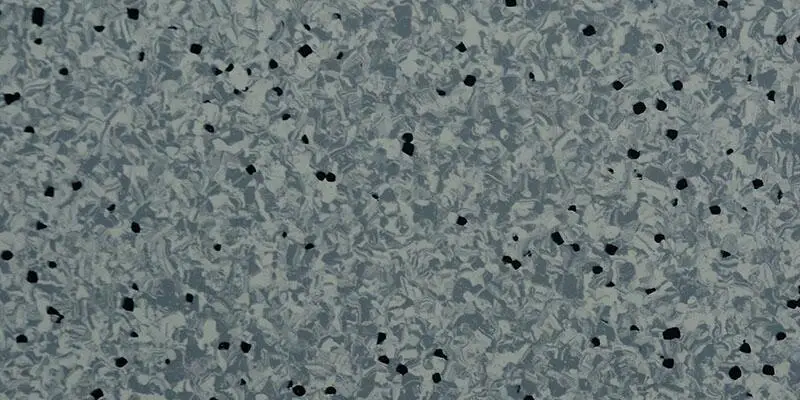

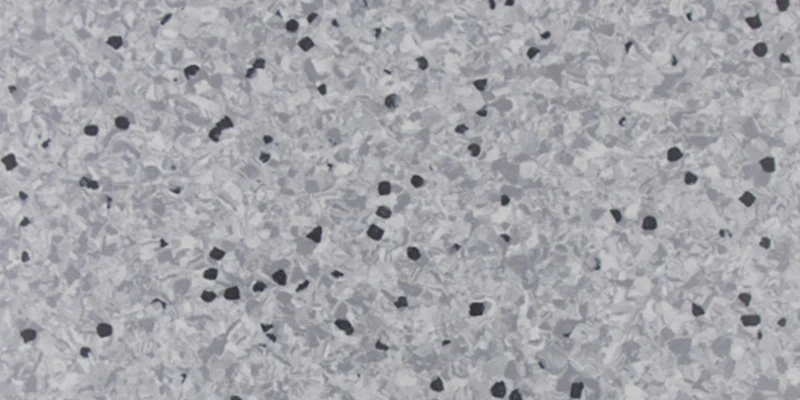

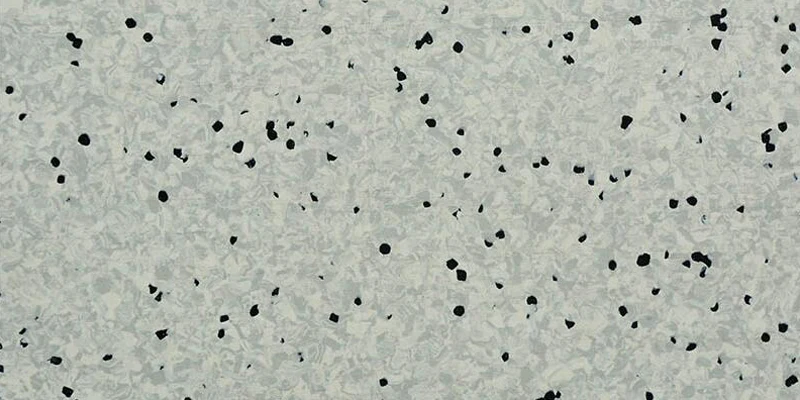

Anti-Static PVC Flooring

Overview

Standard Anti-static PVC Flooring
Anti-static agents are added to the PVC matrix, providing surface electrostatic discharge properties. Suitable for areas with basic static control requirements.
Conductive Particle (Carbon-based) Anti-static PVC Flooring
Conductive carbon particles are evenly dispersed in the PVC matrix, forming a permanent conductive network. It delivers stable and durable anti-static performance and is Ideal for static-sensitive areas such as electronics factories and cleanrooms.
Double-fiber Anti-static PVC Flooring
Embedded conductive fibers are arranged in a crisscross pattern within the flooring, creating continuous conductive pathways. This ensures excellent and uniform anti-static performance.

By Product Form

Rolls
Supplied in wide, long rolls with fewer seams. Ideal for large-scale, continuous installation, offering superior integrity.
Tiles
Installed piece by piece, allowing easy replacement and maintenance of specific areas. Highly flexible installation, commonly used in medium-sized or localized spaces.

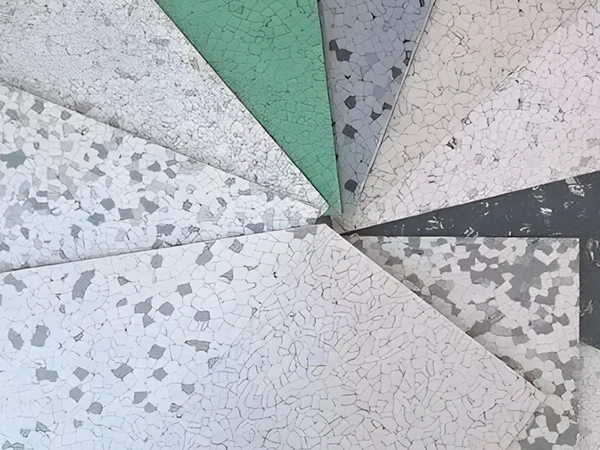

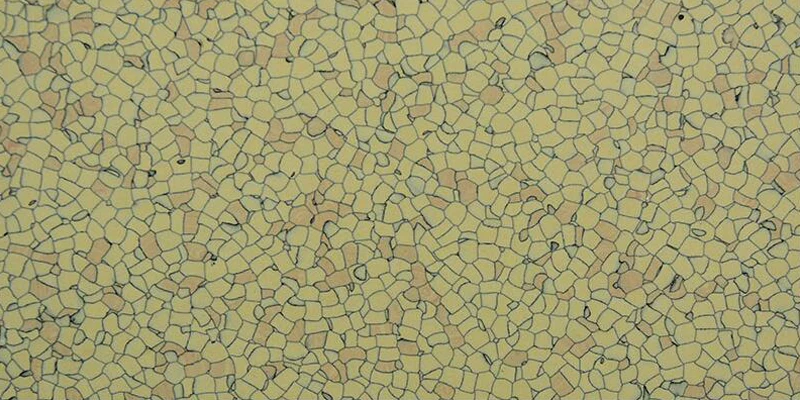

Anti-static PVC flooring

Specifications

Table 3: Anti-Static PVC Roll Flooring Technical Specifications
Thickness	EN 428	2.0 / 2.5 / 3.0 mm
Dimensions	EN 428	2.0 m × 20 m
Weight	EN 428	2900 g/m²
Resistance value	SJ/T 11236-2001 EN1081	Dissipative 1.0 × 10⁶~1.0 × 10⁹Ω Conductive < 1.0 × 10⁶
Static voltage decay time	SJ/T 10694 (IVI<100V)	Average 0.3S
Friction voltage	SJ/T 10694 (IVI<100V)	Average 70
Fire rating	DIN 4120	B1
Flammability	SJ/T 11236 (< 10S, achieves FV-0 level)	Average 0.35S \| FV-0
Smoke density	ASTM E-662	< 450
Abrasion loss	SJ/T 11236-2001 (≤ 0.020 g/cm²)	Average 0.014
Antibacterial properties	DIN EN ISO 846-A/C	No bacterial growth
Caster wheel test	EN 425	Not affected
Hazardous substances limit test	GB 18586-2001	Compliant
Smoke toxicity	GB 8024-2006	ZA₃ grade
Residual indentation	EN 433 SJ/T 11236-2001	< 0.1 mm ≤ 0.15 mm
Dimensional stability	EN 434	≤ 0.35%
Color stability	EN ISO 105-B02	degree 6
Chemical resistance	DIN 423, FN ISO 26987	good
Impact sound absorption	VLI, IS0 104, IS0 717	Approx 2dB
Slip resistance test	DIN 51130 / EN 13893	R9/DS
Thermal conductivity	EN 12667	0.03 w/(m.k)
Cleanroom	ASTM F51/69	Class A, non-shedding Suitable for use in flowing classes of clean room:ISO 1466-11999 Class 4

Table 4: Anti-Static PVC Tile Flooring Technical Specifications
Performance	Standard	Conductive Tile Flooring	Dissipative Tile Flooring
Thickness	EN 428	2.0 / 2.5 / 3.0 mm
Dimensions	EN 426	600 × 600 mm 900 × 900 mm	610 × 610mm 900 × 900mm
Weight	EN430	2.0 mm: 3.8 kg/m² 2.5 mm: 4.8 kg/m² 3.0 mm: 5.8 kg/m²
Resistance value	DIN 1953 ASTM F-1550 NFPA99	2.5 × 10⁴-10⁶ Ω	10⁶-10⁹Ω
Static voltage decay time	SJ/T 10694 (LVL<100V)	Average 0.4S
Friction voltage	SJ/T 10694 (LVL<100V)	Average 70
Flame retardant rating	DIN 4102	B1
Flammability	SJ/T 11236 (<10s, reaches FV-0 rating)	Average 0.35s I FV-0
Abrasion loss	SJ/T 11236-2001(≤ 0.020 g/cm²,100r)	Average 0.014
Wear resistance	EN 660-2	T group ITEN-T < 2.0 mm³
Caster wheel test	EN 425	Not affected
Residual indentation	EN 433 DIN 51955	0.030 mm (2.0 mm) 0.035 mm (2.5 mm) 0.040 mm (3.0 mm)
Dimensional stability	EN 434	≤ 0.10%
Color fastness	EN ISO 105-B02	At least 6
Chemical resistance	DIN 423 DIN 51958	Offers excellent resistance ask for special sheet
Impact sound absorption	VLI, ISO 104, ISO 717	Approx 2dB
Healthcare facility standards	NFPA 99	Confirms to the requirement of NFPA99
